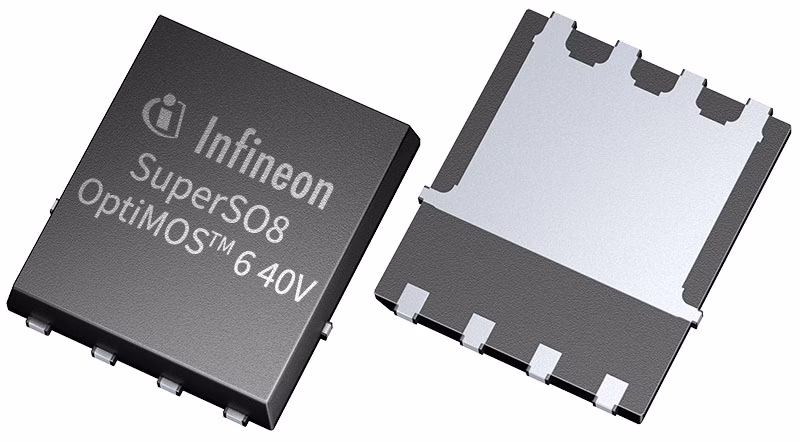

ISC012N04NM6
  • ISC012N04NM6

ISC012N04NM6

Active and preferred

The ISC012N04NM6 is part of the BiC OptiMOS™6 40V NL product family, offering a benchmark solution for Normal Level (higher threshold voltage) required applications. A higher Vth for the normal level portfolio means that only larger gate voltage spikes would cause unwanted turn-on. In addition, lower QGD/QGS ratios (CGD/CGS divider ratio) reduce the peak of the gate voltage spikes, further contributing to the robustness against unwanted turn-on.

Infineon Technologies ISC012N04NM6 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.58

ID (@25°C) max

232 A

ID max

232 A

IDpuls max

928 A

Mounting

SMT

Operating Temperature range

-55 °C to 175 °C

Package

SuperSO8 5x6

Pin Count

8 Pins

Polarity

N

Ptot max

125 W

QG

51 nC

QG (typ @10V)

51 nC

RDS (on) (@10V) max

1.2 mΩ

RDS (on) max

1.2 mΩ

Special Features

Fused leads

VDS max

40 V

VGS(th) range

1.8 V to 2.8 V

VGS(th)

2.3 V

Apps

Cordless power tools and outdoor power equipment

Features

  • Normal Level gate threshold
  • Optimized Charge ratio
  • Low gate charge
  • 100% Avalanche tested
  • Superior thermal resistance

Description

  • Resilient Gate Drive in Noisy Areas
  • Reduced peak gate voltage spikes
  • Lower switching losses, low gate charge
  • Robust performance
  • Suitable for FOC and DTC motor control
