IRS2007M
  • IRS2007M

IRS2007M

Active and preferred

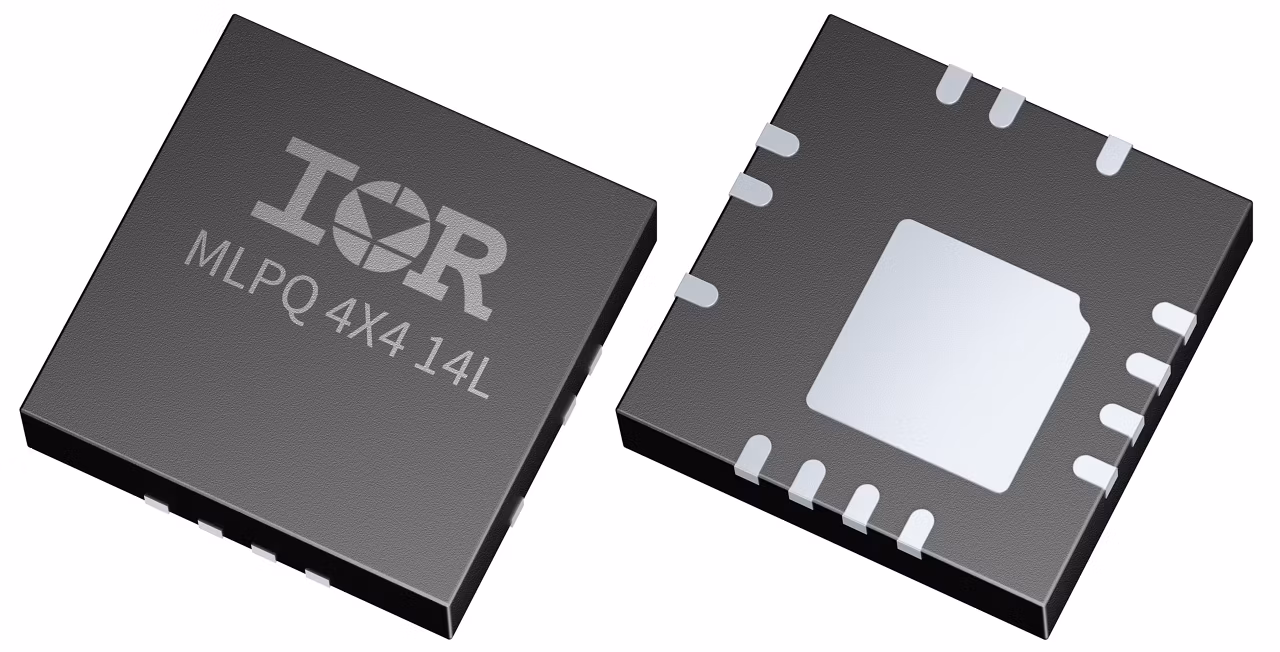

EiceDRIVER™ 200 V half-bridge gate driver IC with typical 0.29 A source and 0.6 A sink currents in MLPQ 4x4 14L package for MOSFETs. It is a levelshift junction-isolated driver with high and low side referenced outputs. The logic input is compatible with standard CMOS or LSTTL output. The output drivers feature a high pulse current buffer stage and the floating channel can be used to drive an N-channel power MOSFET in the high side configuration.

Infineon Technologies IRS2007M Product Info

16 April 2026 0

Parameters

Channels

2

Configuration

Half-Bridge

Input Vcc range

10 V to 20 V

Isolation Type

Functional levelshift JI (Junction Isolated)

Output Current (Source)

0.29 A

Output Current (Sink)

0.6 A

Qualification

Industrial

Turn Off Propagation Delay

150 ns

Turn On Propagation Delay

680 ns

VBS UVLO (On)

8.9 V

VBS UVLO (Off)

8.2 V

VCC UVLO (On)

8.9 V

VCC UVLO (Off)

8.2 V

Voltage Class

200 V

Apps

Electric power steering (EPS), Light electric vehicle solutions, Multicopters and drones, Motor control

Features

  • IO+/ IO-of 290 mA / 600 mA typ.
  • Gate drive sup. < 20 V per channel
  • Under voltage lockout for Vcc, VBS
  • 3.3 V, 5 V, 15 V input logic compa.
  • Tolerant to neg. transient volt.
  • For use w/ bootstrap power supplies
  • Cross-conduction prevention logic
  • Matched prop. delay for both chan.
  • 160/150 ns propagation delay
  • Internal set dead-time
  • Highside output in phase with input
  • Lowside outp. out of phase w/ inp.
