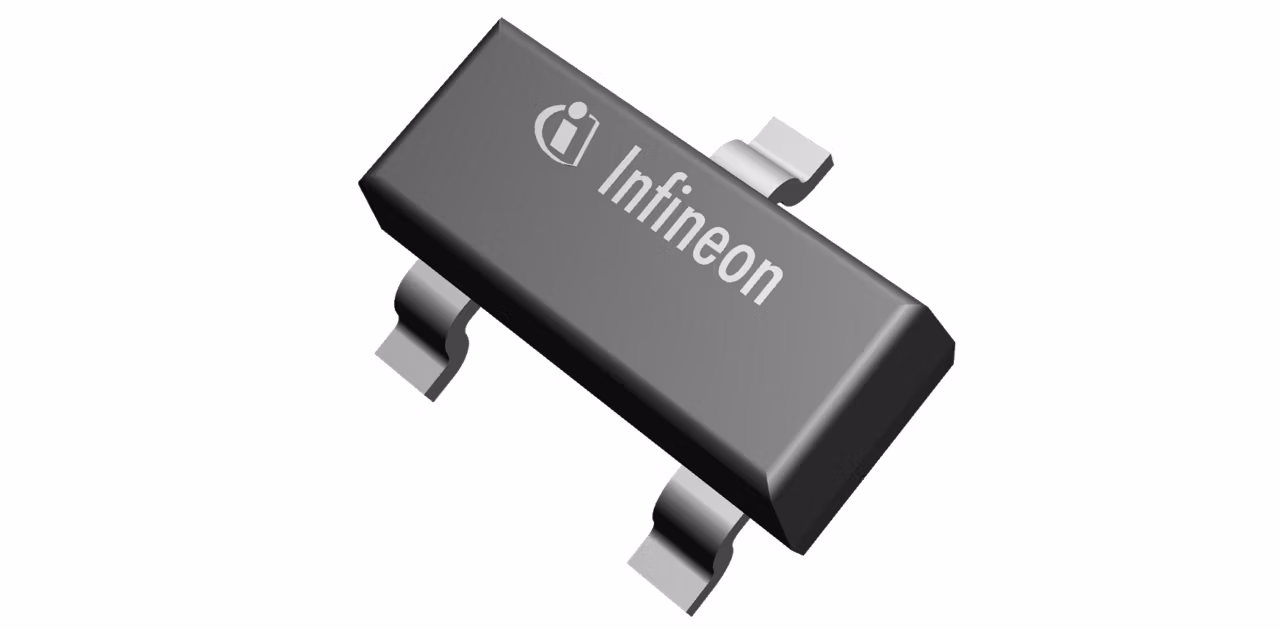

IRLML9303
  • IRLML9303

IRLML9303

The StrongIRFET™ power MOSFET family is optimized for low RDS(on) and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.

Infineon Technologies IRLML9303 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.05

ID (@25°C) max

-2.3 A

Moisture Sensitivity Level

1

Mounting

SMD

Package

SOT-23

Polarity

P

Ptot (@ TA=25°C) max

1.25 W

Qgd

1.2 nC

QG (typ @4.5V)

2 nC

RDS (on) (@10V) max

165 mΩ

RDS (on) (@4.5V) max

270 mΩ

RthJA max

100 K/W

Special Features

Small Power

Tj max

150 °C

VDS max

-30 V

VGS(th) range

-1.3 V to -2.4 V

VGS(th)

-1.85 V

VGS max

20 V

Features

  • Standard surface-mount power package
  • Qualification according JEDEC standard
  • Applications switching below <100 kHz
  • Softer body-diode

Description

  • Drop-in replacement with standard pinout
  • Industry standard qualification level
  • High performance, low-frequency
  • Increased power density
