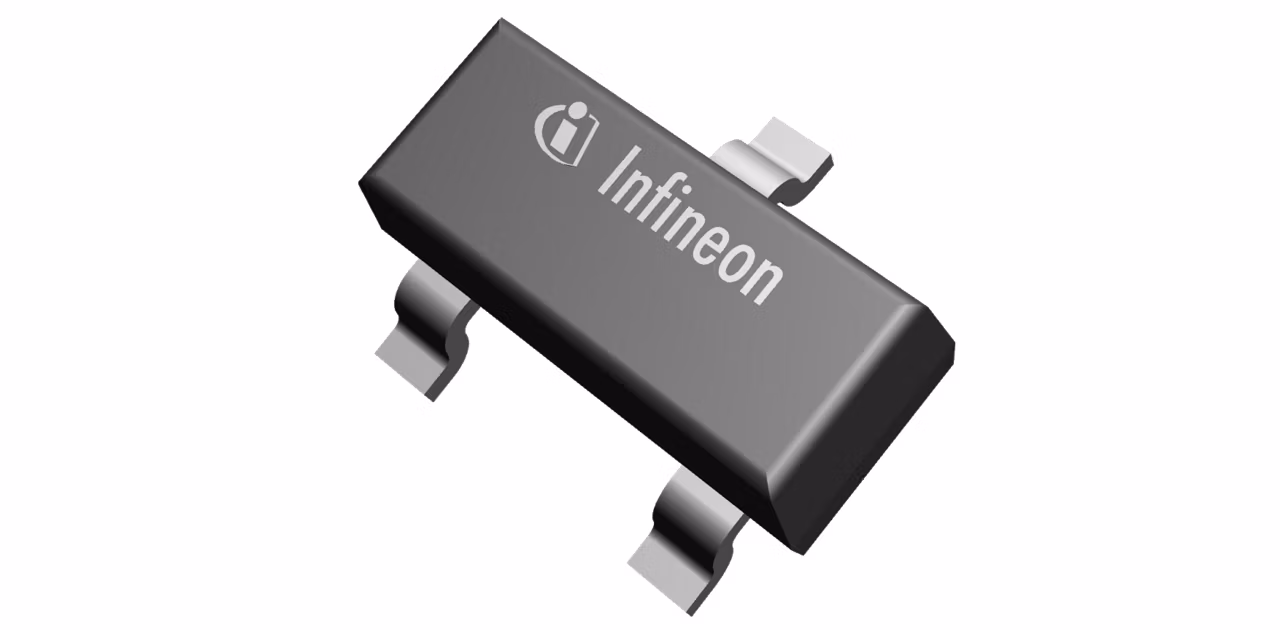

IRLML6402
  • IRLML6402

IRLML6402

The IR MOSFET family of power MOSFETs utilizes proven silicon processes offering designers a wide portfolio of devices to support various applications such as DC motors, inverters, SMPS, lighting, load switches as well as battery powered applications.The devices are available in a variety of surface mount and through-hole packages with industry standard footprints for ease of design.

Infineon Technologies IRLML6402 Product Info

16 April 2026 1

Parameters

Budgetary Price €/1k

0.06

ID (@25°C) max

-3.7 A

Moisture Sensitivity Level

1

Mounting

SMD

Package

SOT-23

Polarity

P

Ptot (@ TA=25°C) max

1.3 W

Qgd

2.8 nC

QG (typ @4.5V)

8 nC

RDS (on) (@4.5V) max

65 mΩ

RthJA max

100 K/W

Special Features

Small Power

Tj max

150 °C

VDS max

-20 V

VGS(th) range

-0.4 V to -1.2 V

VGS(th)

-0.55 V

VGS max

12 V

Apps

Digital input/output (I/O) modules, Servo motor drive and control, Home and building automation

Features

  • Planar cell structure for wide SOA
  • Optimized for broadest availability
  • Product qualification according to JEDEC
  • Silicon optimized for applications
  • Industry standard surface-mount package

Description

  • Increased ruggedness
  • Wide availability at distribution
  • Industry standard qualification level
  • High performance, low-frequency
  • Drop-in replacement with standard pinout
