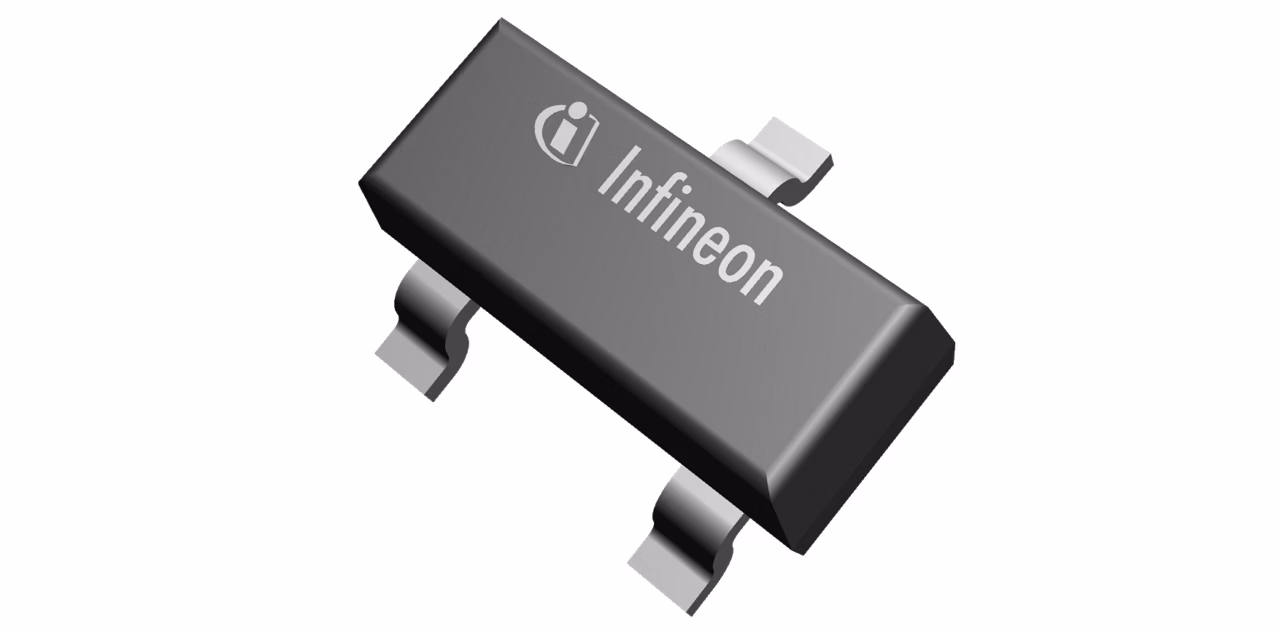

IRLML2244
  • IRLML2244

IRLML2244

The StrongIRFET™ power MOSFET family is optimized for low RDS(on) and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.

Infineon Technologies IRLML2244 Product Info

16 April 2026 9

Parameters

Budgetary Price €/1k

0.06

ID (@25°C) max

-4.3 A

Moisture Sensitivity Level

1

Mounting

SMD

Package

SOT-23

Polarity

P

Ptot (@ TA=25°C) max

1.3 W

Qgd

2.9 nC

QG (typ @4.5V)

6.9 nC

RDS (on) (@4.5V) max

54 mΩ

RthJA max

100 K/W

Special Features

Small Power

Tj max

150 °C

VDS max

-20 V

VGS(th) range

-0.4 V to -1.1 V

VGS(th)

-0.75 V

VGS max

12 V

Apps

Automotive BMS, High-performance cockpit controller, Power adapters and chargers, Servo motor drive and control, Uninterruptible power supplies (UPS)

Features

  • Standard surface-mount power package
  • Qualification according JEDEC standard
  • Applications switching below <100 kHz
  • Softer body-diode

Description

  • Drop-in replacement with standard pinout
  • Industry standard qualification level
  • High performance, low-frequency
  • Increased power density
