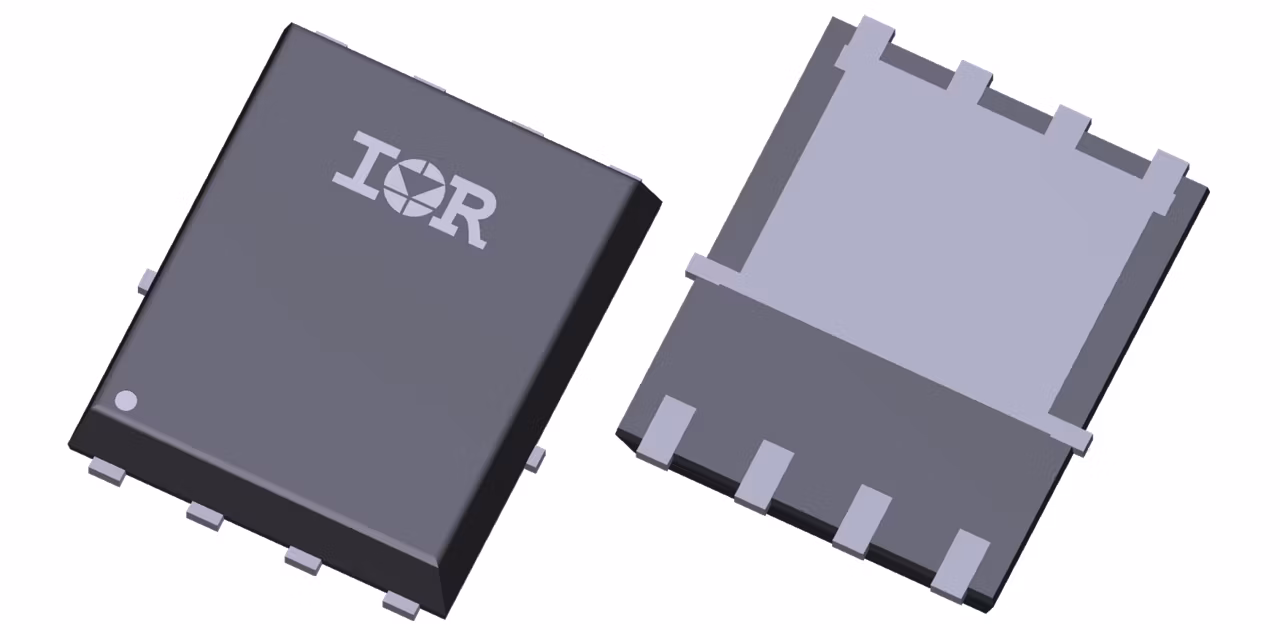

IRLH6224
  • IRLH6224

IRLH6224

The StrongIRFET™ power MOSFET family is optimized for low RDS(on) and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.

Infineon Technologies IRLH6224 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.38

ID (@25°C) max

105 A

Moisture Sensitivity Level

1

Mounting

SMD

Operating Temperature range

-55 °C to 150 °C

Package

SuperSO8 5x6

Polarity

N

Ptot (@ TA=25°C) max

3.6 W

Ptot max

52 W

Qgd

8.5 nC

QG (typ @4.5V)

44 nC

RDS (on) (@4.5V) max

3 mΩ

RthJC max

2.4 K/W

Special Features

Super Logic Level

Tj max

150 °C

VDS max

20 V

VGS(th) range

0.5 V to 1.1 V

VGS(th)

0.8 V

VGS max

12 V

Features

  • Standard surface-mount power package
  • Qualification according JEDEC standard
  • Applications switching below <100 kHz
  • Softer body-diode
  • Wide portfolio available

Description

  • Drop-in replacement with standard pinout
  • Industry standard qualification level
  • High performance, low-frequency
  • Increased power density
  • Flexibility for optimal device selection
