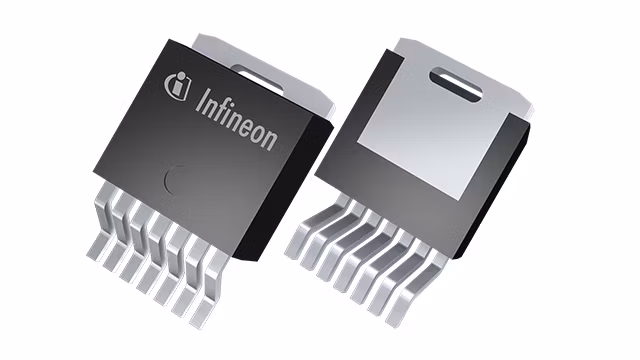

IRL40SC209
  • IRL40SC209

IRL40SC209

The StrongIRFET™ power MOSFET family is optimized for low RDS(on) and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.

Infineon Technologies IRL40SC209 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

1.58

ID (@25°C) max

300 A

Mounting

SMD

Operating Temperature range

-55 °C to 175 °C

Package

D2PAK 7pin (TO-263 7pin)

Pin Count

7 Pins

Polarity

N

Ptot max

375 W

Qgd

88 nC

QG (typ @4.5V)

178 nC

RDS (on) (@10V) max

0.8 mΩ

RDS (on) (@4.5V) max

1.1 mΩ

RthJA max

62 K/W

RthJC max

0.4 K/W

Rth

0.4 K/W

VDS max

40 V

VGS(th) range

1 V to 2.4 V

VGS(th)

1.7 V

Apps

Light electric vehicle solutions

Features

  • Optimized for broadest availability
  • Product qualification according to JEDEC
  • Industry standard surface mount power
  • Higher current-rating (by 23%)

Description

  • Wide distribution availability
  • Industry standard qualification level
  • Drop-in replacement with standard pinout
  • High power density
