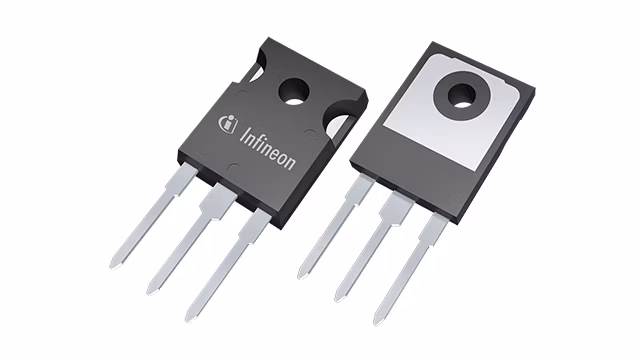

IRFP9140N
  • IRFP9140N

IRFP9140N

The IR MOSFET family of power MOSFETs utilizes proven silicon processes offering designers a wide portfolio of devices to support various applications such as DC motors, inverters, SMPS, lighting, load switches as well as battery powered applications.The devices are available in a variety of surface mount and through-hole packages with industry standard footprints for ease of design.

Infineon Technologies IRFP9140N Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.7

ID (@25°C) max

-23 A

Mounting

THT

Package

TO-247

Polarity

P

Ptot max

120 W

Qgd

34 nC

QG (typ @10V)

64.7 nC

RDS (on) (@10V) max

117 mΩ

RthJC max

1.3 K/W

Tj max

175 °C

VDS max

-100 V

VGS(th) range

-2 V to -4 V

VGS(th)

-3 V

VGS max

20 V

Features

  • Planar cell structure for wide SOA
  • Optimized for broadest availability
  • Product qualification according to JEDEC
  • Silicon optimized for applications
  • Industry standard through-hole power
  • High current rating

Description

  • Increased ruggedness
  • Wide availability at distribution
  • Industry standard qualification level
  • High performance, low-frequency
  • Drop-in replacement with standard pinout
  • High current carrying capability
