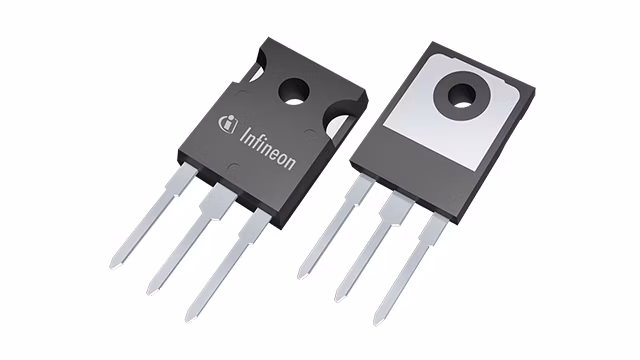

IRFP90N20D
  • IRFP90N20D

IRFP90N20D

The IR MOSFET family of power MOSFETs utilizes proven silicon processes offering designers a wide portfolio of devices to support various applications such as DC motors, inverters, SMPS, lighting, load switches as well as battery powered applications.The devices are available in a variety of surface mount and through-hole packages with industry standard footprints for ease of design.

Infineon Technologies IRFP90N20D Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

2.14

ID (@25°C) max

94 A

Mounting

THT

Operating Temperature range

-55 °C to 175 °C

Package

TO-247

Polarity

N

Ptot max

580 W

Qgd

87 nC

QG (typ @10V)

180 nC

RDS (on) (@10V) max

23 mΩ

RthJC max

0.26 K/W

Tj max

175 °C

VDS max

200 V

VGS(th) range

3 V to 5 V

VGS(th)

4 V

VGS max

30 V

Features

  • Planar cell structure for wide SOA
  • Optimized for broadest availability
  • Product qualification according to JEDEC
  • Silicon optimized for applications
  • Industry standard through-hole power
  • High current rating

Description

  • Increased ruggedness
  • Wide availability at distribution
  • Industry standard qualification level
  • High performance, low-frequency
  • Drop-in replacement with standard pinout
  • High current carrying capability
