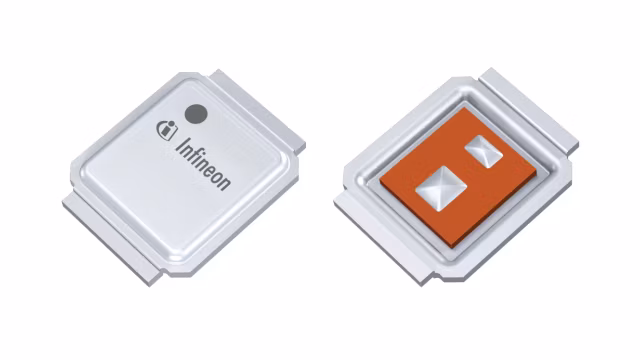

IRF6712S
  • IRF6712S

IRF6712S

The StrongIRFET™ power MOSFET family is optimized for low RDS(on) and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.

Infineon Technologies IRF6712S Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.53

ID (@25°C) max

68 A

Micro-stencil

IRF66SQ-25

Moisture Sensitivity Level

1

Mounting

SMD

Operating Temperature range

-40 °C to 150 °C

Package

DirectFET (S)

Polarity

N

Ptot (@ TA=25°C) max

2.2 W

Ptot max

36 W

Qgd

4.4 nC

QG (typ @4.5V)

12 nC

RDS (on) (@4.5V) max

8.7 mΩ

RDS (on) (@10V) max

4.9 mΩ

RthJC max

3.5 K/W

Tj max

150 °C

VDS max

25 V

VGS(th) range

1.4 V to 2.4 V

VGS(th)

1.9 V

VGS max

20 V

Features

  • Optimized for broadest availability from distribution partners
  • Product qualification according to JEDEC standard
  • High-current rating
  • Dual-side cooling capability
  • Low package height of 0.7mm
  • Low parasitic (1-2 nH) inductance package
  • 100% lead-free (No RoHS exemption)

Description

  • Wide availability from distribution partners
  • Industry standard qualification level
  • High power density
  • Optimum thermal performance
  • Compact form factor
  • High efficiency
  • Environmentally friendly
