IR2301S
  • IR2301S

IR2301S

Active

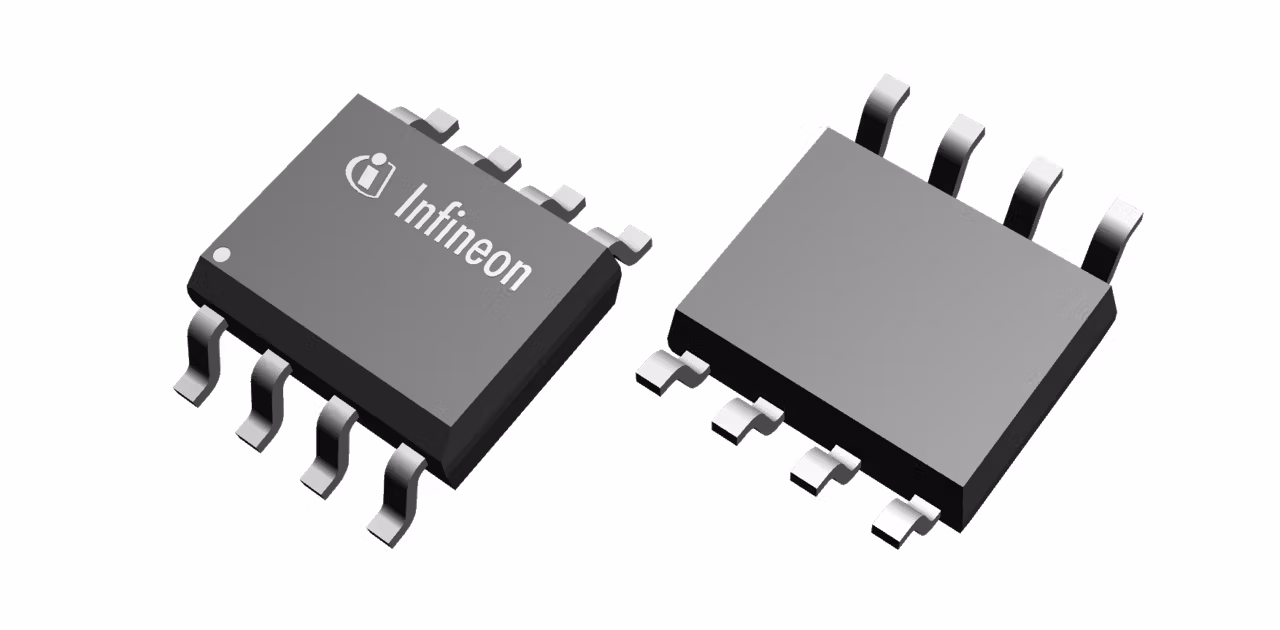

600 V high and low-side gate driver IC for IGBTs and MOSFETs with typical 0.2 A source and 0.35 A sink currents in 8 Lead SOIC package. Also available in 8 Lead PDIP.

Infineon Technologies IR2301S Product Info

16 April 2026 0

Parameters

Channels

2

Configuration

High-side and low-side

Input Vcc range

5 V to 20 V

Isolation Type

Functional levelshift JI (Junction Isolated)

Output Current (Sink)

0.35 A

Output Current (Source)

0.2 A

Qualification

Industrial

Turn Off Propagation Delay

200 ns

Turn On Propagation Delay

220 ns

VBS UVLO (On)

4.1 V

VBS UVLO (Off)

3.8 V

VCC UVLO (On)

4.1 V

VCC UVLO (Off)

3.8 V

Voltage Class

600 V

Apps

Power tools, EV charging, Industrial automation, Motor control, Power conversion

Features

  • Floating channel for bootstrap op.
  • Fully operational to +600 V
  • Tolerant to neg. transient volt.
  • dV/dt immune
  • Gate drive supply range: 5 to 20 V
  • Undervolt. lockout for both channel
  • 3.3, 5 & 15 V input logic compatib.
  • Matched prop. delay for both chan.
  • Logic & power ground +/- 5 V offset
  • Lower di/dt gate driver
  • Outputs in phase with inputs
