IR2233S
  • IR2233S

IR2233S

Active and preferred

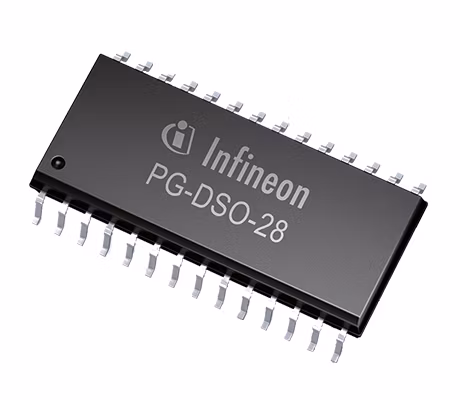

EiceDRIVER™ 1200 V 3-phase gate driver IC with typical 0.25 A source and 0.5 A sink currents in DSO-28 lead package for IGBT Dicretes and modules. It utilizes proprietary 1200 V HVIC and latch immune CMOS technologies which enable a rugged, monolithic construction with integrated protective features such over-current protection, fault reporting, under voltage lockout protection, cross-conduction prevention, independent op amp, shutdown, separate logic and power ground.

Infineon Technologies IR2233S Product Info

16 April 2026 0

Parameters

Channels

6

Configuration

Three Phase

Input Vcc range

10 V to 20 V

Isolation Type

Functional levelshift JI (Junction Isolated)

Output Current (Sink)

0.5 A

Output Current (Source)

0.25 A

Qualification

Industrial

Turn Off Propagation Delay

700 ns

Turn On Propagation Delay

750 ns

VBS UVLO (Off)

8.2 V

VBS UVLO (On)

8.6 V

VCC UVLO (Off)

8.2 V

VCC UVLO (On)

8.6 V

Voltage Class

1200 V

Apps

Industrial automation, Industrial motor drives and controls, Heating ventilation and air conditioning (HVAC), Commercial heat pumps

Features

  • Floating channel up to 1200 V
  • Integrated over-current shut down
  • Under-voltage lockout protection
  • Cross conduction prevention
  • Current sensing op amp
  • Low quiescent current
  • Tolerant to neg. transient volt.
  • dV/dt immune
  • Matched prop. delay for all chan.
  • Independent 3 half-bridge drivers
  • 2.4 V logic compatible
  • Outputs out of phase with inputs
