IQEH46NE2LM7UCGSC
  • IQEH46NE2LM7UCGSC

IQEH46NE2LM7UCGSC

Active and preferred

The OptiMOS™ 7 25 V offers a new level of application-optimization, enabling peak performance for data centers, servers, AI & more. The portfolio is available in two technology flavors, including products optimized for hard-switching as well as for soft-switching topologies. Hard-switching optimized products come with an excellent Miller ratio, FOMs and RDS(on) 10, while products optimized for soft-switching offer ultra-low RDS(on)45 and FOMQg.

Infineon Technologies IQEH46NE2LM7UCGSC Product Info

16 April 2026 0

Parameters

ID (@25°C) max

440 A

IDpuls max

1760 A

Operating Temperature range

-55 °C to 175 °C

Package

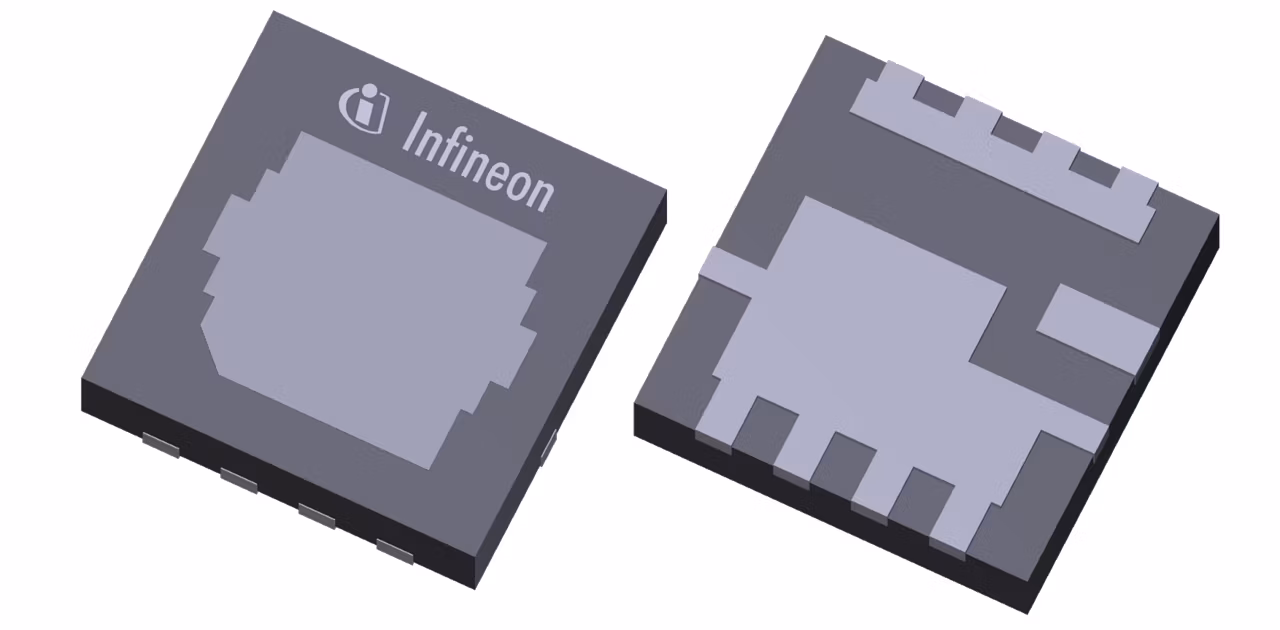

PQFN 3.3x3.3 Source-Down

Polarity

N

QG (typ @10V)

57 nC

QG (typ @4.5V)

27 nC

RDS (on) (@10V) max

0.46 mΩ

RDS (on) (@4.5V) max

0.76 mΩ

Special Features

Logic Level, Hard-switching optimized, Dual-Side Cooling

VDS max

25 V

VGS(th) range

1.4 V to 2 V

VGS(th)

1.7 V

Apps

Data center power solutions, Server power supply units (PSU), Medium voltage IBC (48 V), Telecommunications infrastructure, Power conversion

Features

  • Hard- and soft-switching optimizations
  • Hard-switch.: Miller ratio,FOM,RDS(on)10
  • Soft-switch.:RDS(on)45, FOMQg
  • +175°C junction temperature rating
  • Source-down package variants
  • Center-gate footprint, DSC & overmolded

Description

  • Application-specific optimization
  • Improved performance & efficiency
  • Advanced induced turn-on ruggedness
  • Reduced driver and switching losses
  • Reduced conduction losses
  • Increased reliability and power density
  • Superior thermal capabilities
  • Reduced package parasitics
  • Simplified paralleling of MOSFETs
