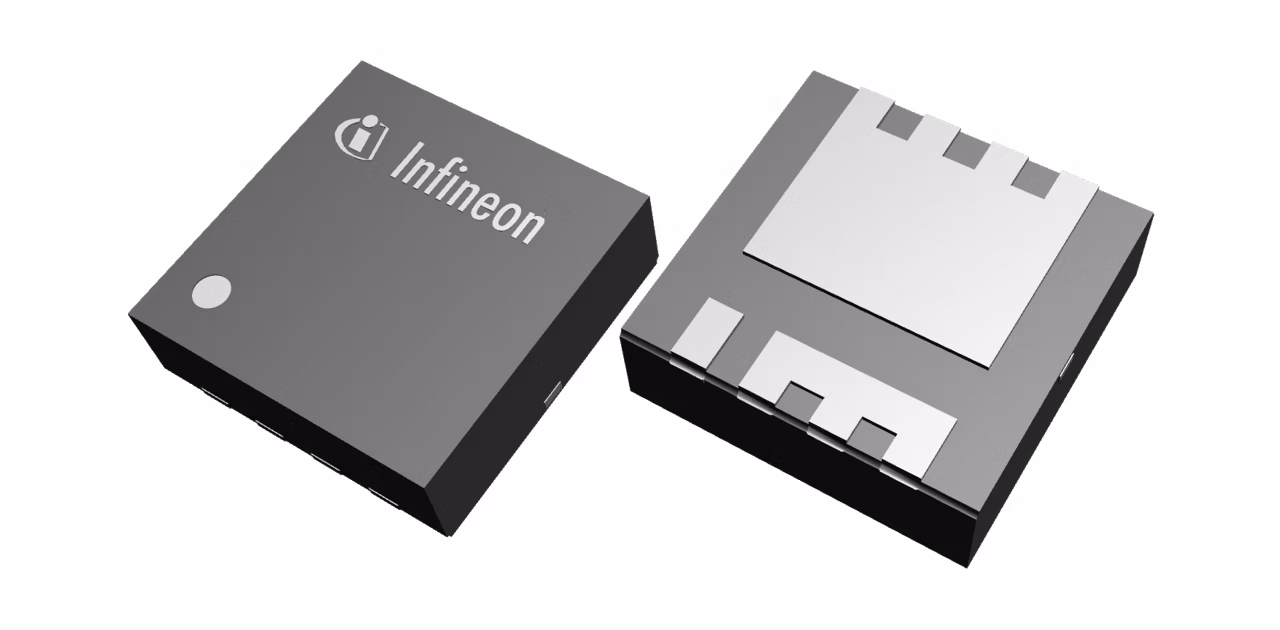

IPZ40N04S5-3R1

Infineon Technologies IPZ40N04S5-3R1 Product Info

16 April 2026 0

Budgetary Price €/1k	0.35
Country of Assembly (Last BE site, current, subject to change)	Malaysia
Country of Diffusion (Last FE site, current, subject to change)	Austria, Germany
ID (@25°C) max	40 A
IDpuls max	160 A
Launch year	2015
Operating Temperature range	-55 °C to 175 °C
Package	S3O8 (PG-TSDSON-8-33)
Planned to be available until at least	2029
Polarity	N
Ptot max	71 W
QG (typ @10V) max	41 nC
QG (typ @10V)	31 nC
Qualification	Automotive
RDS (on) (@10V) max	3.1 mΩ
RthJC max	2.1 K/W
Technology	OptiMOS™5
VDS max	40 V
VGS(th) range	2.2 V to 3.4 V
VGS(th)	2.8 V

Automotive body electronics & power distribution, Automotive secondary power distribution unit
