IPTG025N08NM5
  • IPTG025N08NM5

IPTG025N08NM5

Active

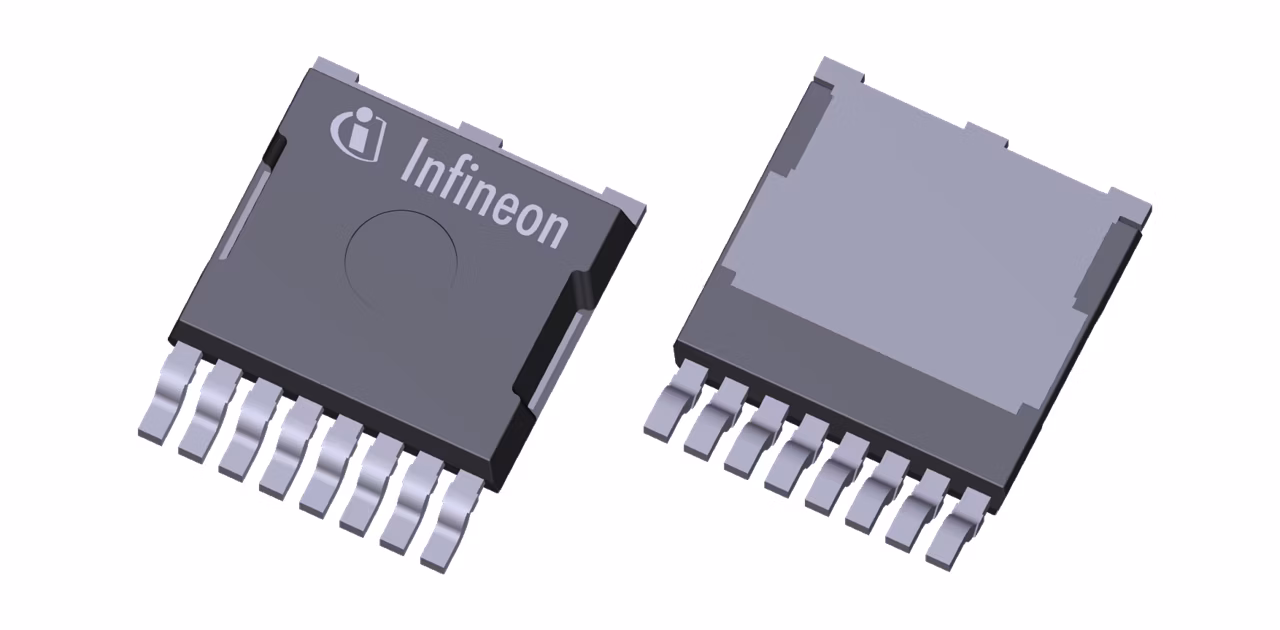

The OptiMOS™ 5 power MOSFET 80 V IPTG025N08NM5 comes in the improved TO-Leaded package with gullwing leads. With a compatible footprint to TO-Leadless, TOLG allows excellent electrical performance compared to D2PAK 7-pin with ~60 percent board space reduction.

Infineon Technologies IPTG025N08NM5 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

1.56

ID (@25°C) max

184 A

Operating Temperature range

-55 °C to 175 °C

Package

TOLG (HSOG-8)

Polarity

N

QG (typ @10V)

70 nC

RDS (on) (@10V) max

2.5 mΩ

VDS max

80 V

VGS(th) range

2.2 V to 3.8 V

VGS(th)

3 V

Features

  • Best in class technology
  • High current rating >300 A
  • Low ringing and voltage overshoot
  • 60% board space reduction
  • Gullwing leads

Description

  • High performance capability
  • High system reliability
  • High efficiency and lower EMI
  • Optimized board utilization
  • High thermal cycling on board handling
