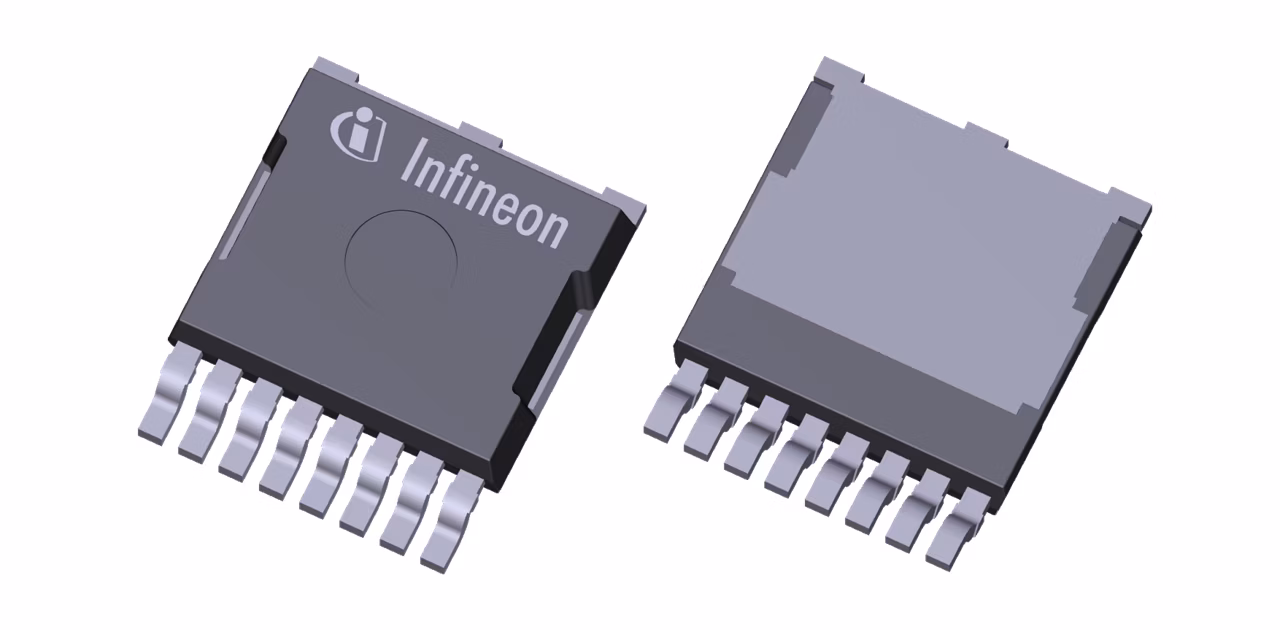

IPTG020N13NM6
  • IPTG020N13NM6

IPTG020N13NM6

Active and preferred

OptiMOS™ 6 135 V targets high-power motor-drive applications such as LEVs, e-forklifts, power and gardening tools, but also UPS applications which predominantly use 72-84 V batteries. This product effectively bridges the gap between the 120 V and 150 V MOSFETs and provides significant improvements in RDS(on) and cost, helping improve the system efficiency.

Infineon Technologies IPTG020N13NM6 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

3.57

ID (@25°C) max

297 A

Operating Temperature range

-55 °C to 175 °C

Package

TOLG (HSOG-8)

Polarity

N

QG (typ @10V)

159 nC

RDS (on) (@10V) max

2 mΩ

VDS max

135 V

VGS(th) range

2.5 V to 3.5 V

VGS(th)

3 V

Features

  • Up to 48% lower ON-state-resistance
  • Up to 38% lower gate threshold voltage spread
  • Up to 70% reduction of reverse recovery charge (Qrr)

Description

  • System cost reduction
  • Less paralleling required
  • Reduced VDS overshoot & switching losses
  • Higher power density designs
