IPTG014N10NM5
  • IPTG014N10NM5

IPTG014N10NM5

Active and preferred

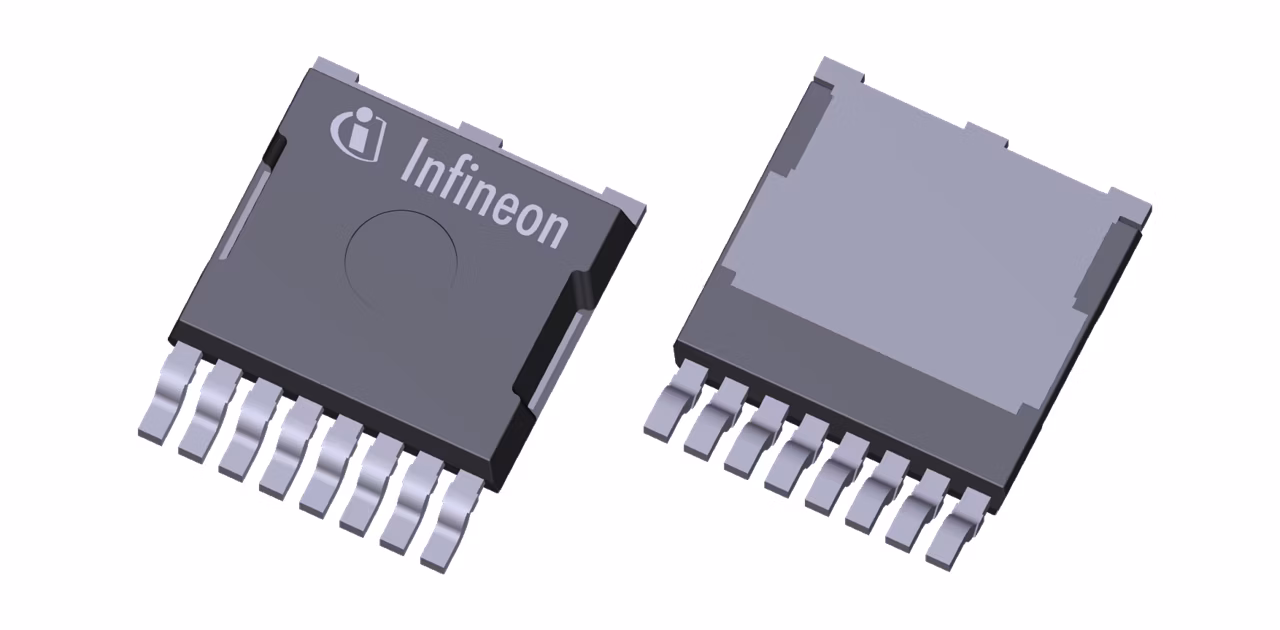

The OptiMOS™ 5 power MOSFET 100 V IPTG014N10NM5 comes in the improved TO-Leaded package with gullwing leads. TOLG allows excellent electrical performance compared to D2PAK 7-pin with ~60 percent board space reduction, offers very low RDS(on) and is optimized to handle high current & 300 A.

Infineon Technologies IPTG014N10NM5 Product Info

16 April 2026 0

Parameters

Battery voltage

48-72 V

Budgetary Price €/1k

2.02

ID (@25°C) max

366 A

IDpuls max

1464 A

Mounting

SMT

Operating Temperature range

-55 °C to 175 °C

Package

TOLG (HSOG-8)

Pin Count

8 Pins

Polarity

N

Ptot max

375 W

QG (typ @10V)

169 nC

RDS (on) (@10V) max

1.4 mΩ

VDS max

100 V

VGS(th) range

2.2 V to 3.8 V

VGS(th)

3 V

Apps

Light electric vehicle solutions, Industrial robots

Features

  • Best in class technology
  • High current rating >300 A
  • Low ringing and voltage overshoot
  • 60% board space reduction
  • Gullwing leads

Description

  • High performance capability
  • High system reliability
  • High efficiency and lower EMI
  • Optimized board utilization
  • High thermal cycling on board handling
