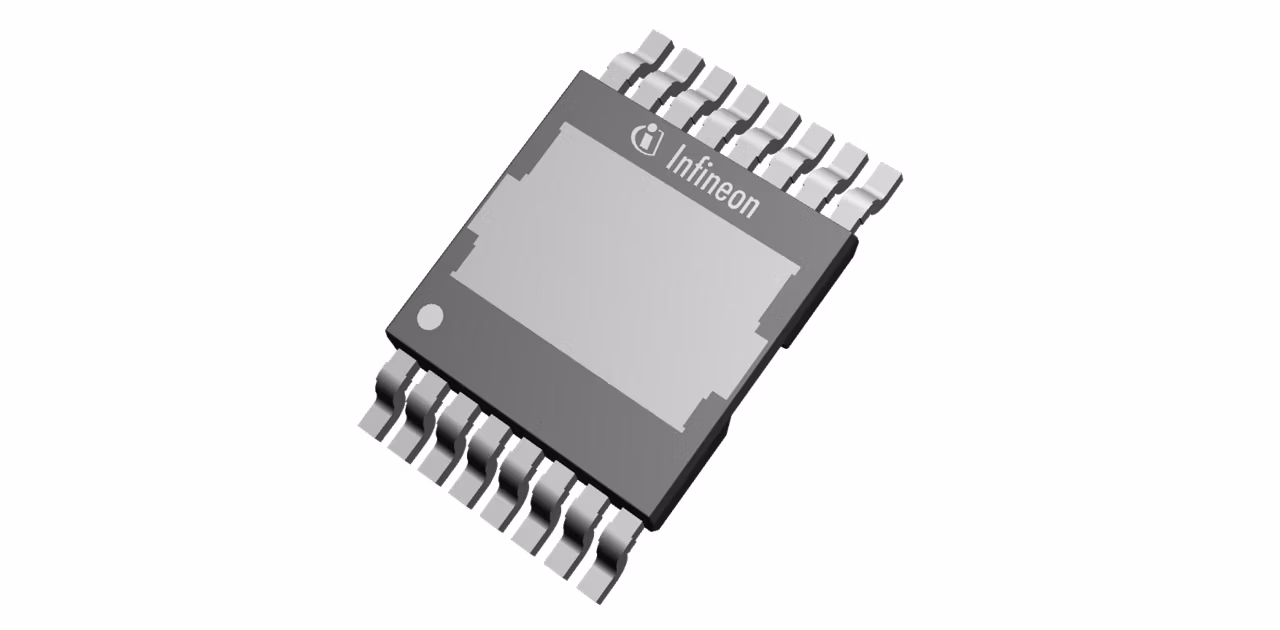

IPTC012N06NM5
  • IPTC012N06NM5

IPTC012N06NM5

Active and preferred

IPTC012N06NM5 is part of the OptiMOS™ 5 power MOSFET in TOLT family: the TO-Leaded top-side cooling package for superior thermal performance. This innovative package combined with the key features of OptiMOS™ 5 technology allows best-in-class products in 60 V as well as high current rating >300 A for high-power density designs. With top-side cooling setup, the drain is exposed at the surface of the package enabling 95 percent of the heat to be dissipated directly to the heatsink achieving 20 percent better RthJA and 50 percent improved RthJC compared to TOLL package. With bottom-side cooling packages like TOLL or D2PAK, the heat is dissipated via the PCB to the heatsink causing high power losses. OptiMOS™ 5 power MOSFET in TOLT targets power tools, light electric vehicles and battery management systems.

Infineon Technologies IPTC012N06NM5 Product Info

16 April 2026 0

Parameters

Battery voltage

24-66 V

Budgetary Price €/1k

2.15

ID (@25°C) max

311 A

IDpuls max

1244 A

Operating Temperature range

-55 °C to 175 °C

Package

TOLT (HDSOP-16)

Polarity

N

Ptot max

214 W

QG (typ @10V)

106 nC

RDS (on) (@10V) max

1.2 mΩ

VDS max

60 V

VGS(th) range

2.1 V to 3.3 V

VGS(th)

2.8 V

Features

  • Low RDS(on)
  • High current rating >300 A
  • Top-side cooling
  • Negative stand-off
  • Sn-free exposed pad
0

Description

  • Efficiency for Extended Battery Life
  • High power density
  • Superior thermal performance
  • Saving in cooling system
  • Minimized thermal resistance to heatsink
