IPT210N25NFD
  • IPT210N25NFD

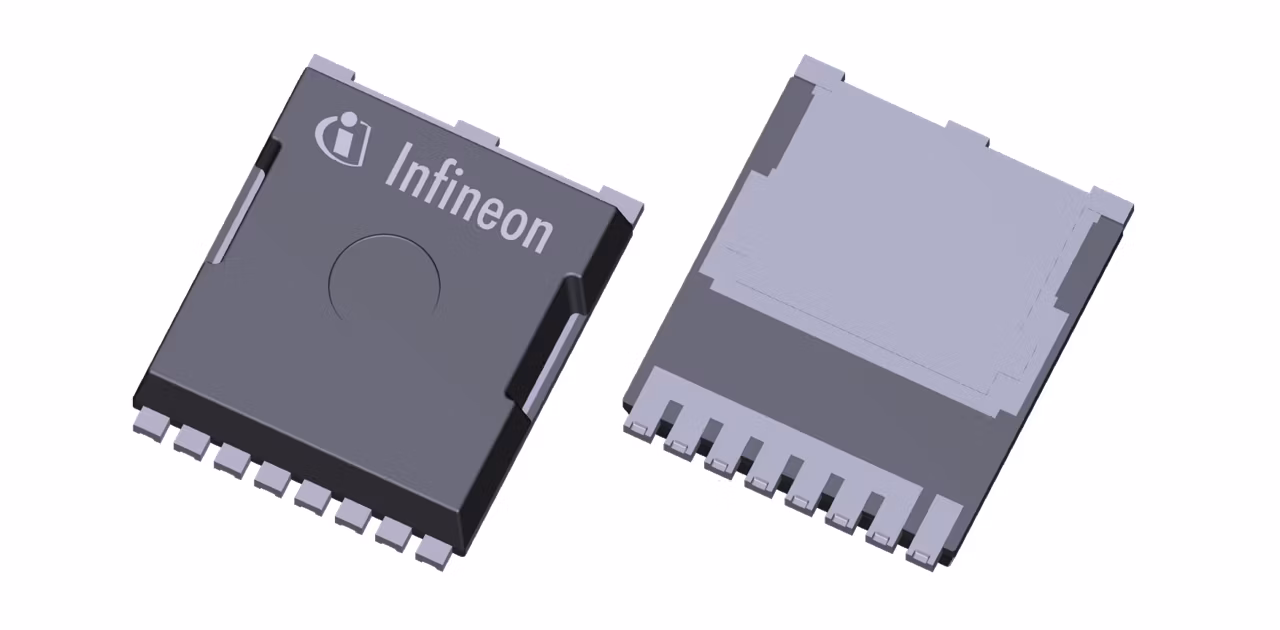

IPT210N25NFD

Infineon's TO-Leadless package is optimized for high current applications such as forklift, light electric vehicles (LEV), POL (point-of-load) and telecom. This package is a perfect solution for high power applications where highest efficiency, outstanding EMI behaviour as well as best thermal behaviour and space reduction are required.

Infineon Technologies IPT210N25NFD Product Info

16 April 2026 1

Parameters

Battery voltage

144-200 V

Budgetary Price €/1k

3.49

Ciss

5300 pF

Coss

300 pF

ID (@25°C) max

69 A

IDpuls max

276 A

Mounting

SMD

Operating Temperature range

-55 °C to 175 °C

Package

TOLL (HSOF-8)

Pin Count

8 Pins

Polarity

N

Ptot max

375 W

Qgd

8 nC

QG (typ @10V)

65 nC

RDS (on) (@10V) max

21 mΩ

RthJA max

62 K/W

RthJC max

0.4 K/W

Rth

0.2 K/W

Special Features

Fast Diode

Tj range

-55 °C to 175 °C

VDS max

250 V

VGS(th) range

2 V to 4 V

VGS(th)

3 V

Apps

Electric vehicle drivetrain system

Features

  • Industry‘s lowest R DS(on)
  • Highest current capability >480A
  • Low package parasitics and inductances

Description

  • Less paralleling and cooling required
  • Highest system reliability
  • System cost reduction
  • Enabling very compact design
