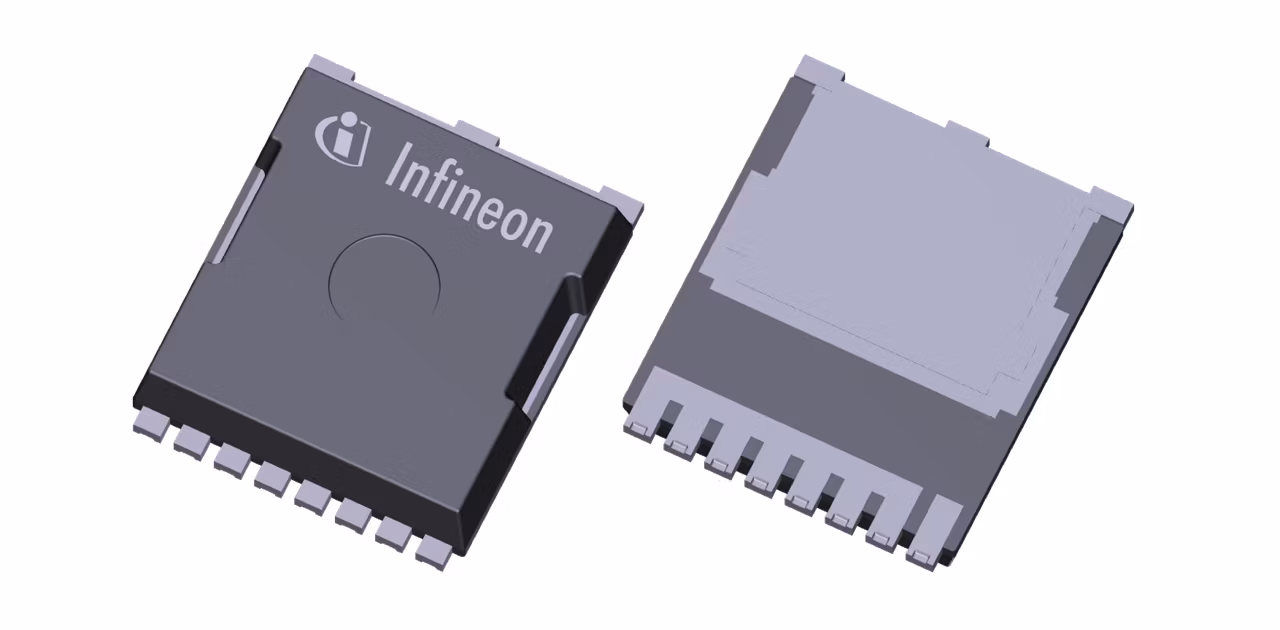

IPT025N15NM6
  • IPT025N15NM6

IPT025N15NM6

Active and preferred

Infineon Technologies IPT025N15NM6 Product Info

16 April 2026 0

Parameters

ID (@25°C) max

263 A

IDpuls max

1052 A

Operating Temperature range

-55 °C to 175 °C

Package

TOLL (HSOF-8)

Polarity

N

Ptot max

395 W

QG (typ @10V)

105 nC

RDS (on) (@10V) max

2.5 mΩ

VDS max

150 V

VGS(th) range

3 V to 4 V

VGS(th)

3.5 V

Apps

Light electric vehicle solutions, Power tools, Photovoltaic, Industrial power supplies

Features

  • 36% lower RDS(on) than OptiMOS™ 5
  • 20% lower FOMg than OptiMOS™ 5
  • Industry's lowest Qrr in 150 V
  • Improved diode softness vs OptiMOS™ 5
  • Tight Vgs(th) spread of +/-500 mV
  • High avalanche ruggedness
  • High current rating
  • Max Tj of 175°C and MSL1

Description

  • Low conduction and switching losses
  • Stable operation with improved EMI
  • Better current sharing when paralleling
  • Superior power handling capability
  • Enhanced robustness
  • Improved system reliability
