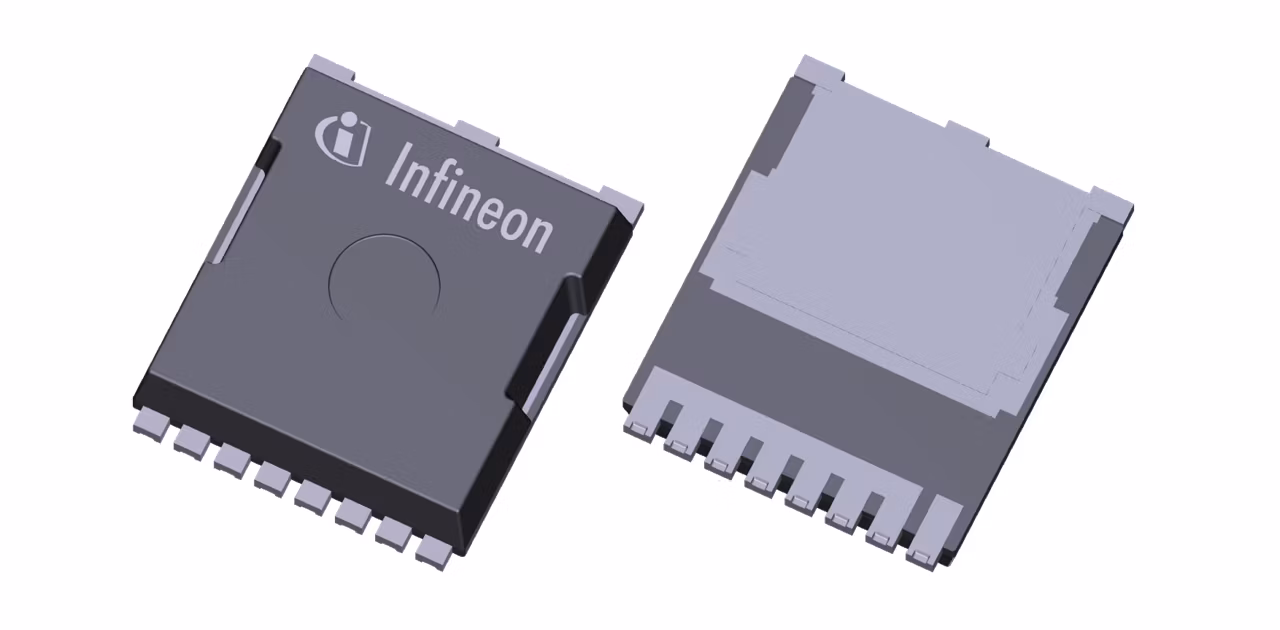

IPT023N10NM5LF2
  • IPT023N10NM5LF2

IPT023N10NM5LF2

Active and preferred

The OptiMOS™ 5 Linear FET 2 technology enables the best-in-class trade-off between on-state resistance and linear mode capability. Combined with the TOLL package, IPT023N10NM5LF2 is targeted for inrush current protection such as hot-swap, e-fuse, and battery protection in battery management systems (BMS).

Infineon Technologies IPT023N10NM5LF2 Product Info

16 April 2026 0

Parameters

ID (@25°C) max

243 A

Operating Temperature range

-55 °C to 175 °C

Package

TOLL (HSOF-8)

Polarity

N

QG (typ @10V)

115 nC

RDS (on) (@10V) max

2.3 mΩ

Special Features

Wide SOA

VDS max

100 V

VGS(th) range

2.3 V to 3.9 V

VGS(th)

3.1 V

Apps

Server power supply units (PSU), Telecommunications infrastructure, Battery management systems (BMS)

Features

  • Wide safe operating area (SOA)
  • Low RDS(on)
  • Lower IGSS compared to Linear FET
  • Optimized transfer characteristic

Description

  • Rugged linear mode operation
  • Low condition losses
  • Improved gate driver compatibility
  • Better current sharing
