IPT014N10N5
  • IPT014N10N5

IPT014N10N5

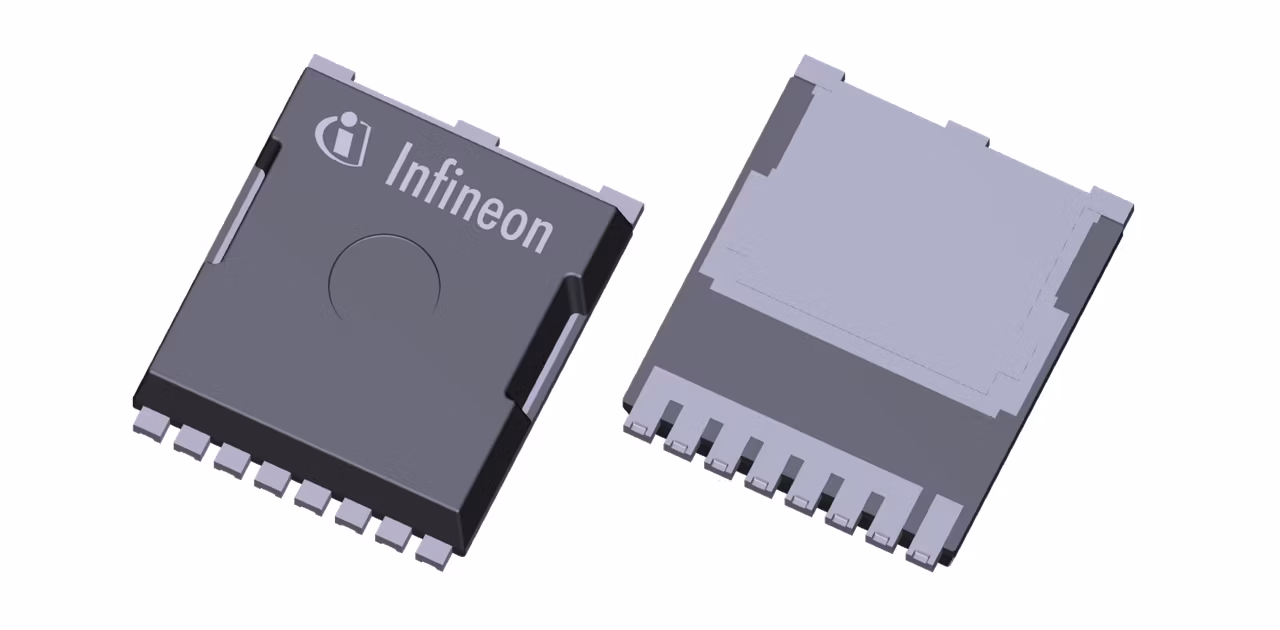

The IPT014N10N5 is Infineon’s OptiMOS™ 5 power MOSFET 1.4 mOhm, 100 V in a TO-Leadless (TOLL) package with a high current capability of 362 A (ID @25˚C). OptiMOS™ 5 power MOSFET in TOLL targets power tools , light electric vehicles and battery management systems .

Infineon Technologies IPT014N10N5 Product Info

16 April 2026 0

Parameters

ID (@25°C) max

362 A

IDpuls max

1448 A

Operating Temperature range

-55 °C to 175 °C

Package

TOLL (HSOF-8)

Polarity

N

Ptot max

375 W

QG (typ @10V)

169 nC

RDS (on) (@10V) max

1.4 mΩ

VDS max

100 V

VGS(th) range

2.2 V to 3.8 V

VGS(th)

3 V

Apps

Multicopters and drones

Features

  • Highest current capability >360 A
  • Up to 44% output capacitance reduction
  • Low package parasitics and inductances

Description

  • Less paralleling and cooling required
  • Highest system reliability
  • System cost reduction
  • Enabling very compact design
