IPT008N06NM5LF
  • IPT008N06NM5LF

IPT008N06NM5LF

Active and preferred

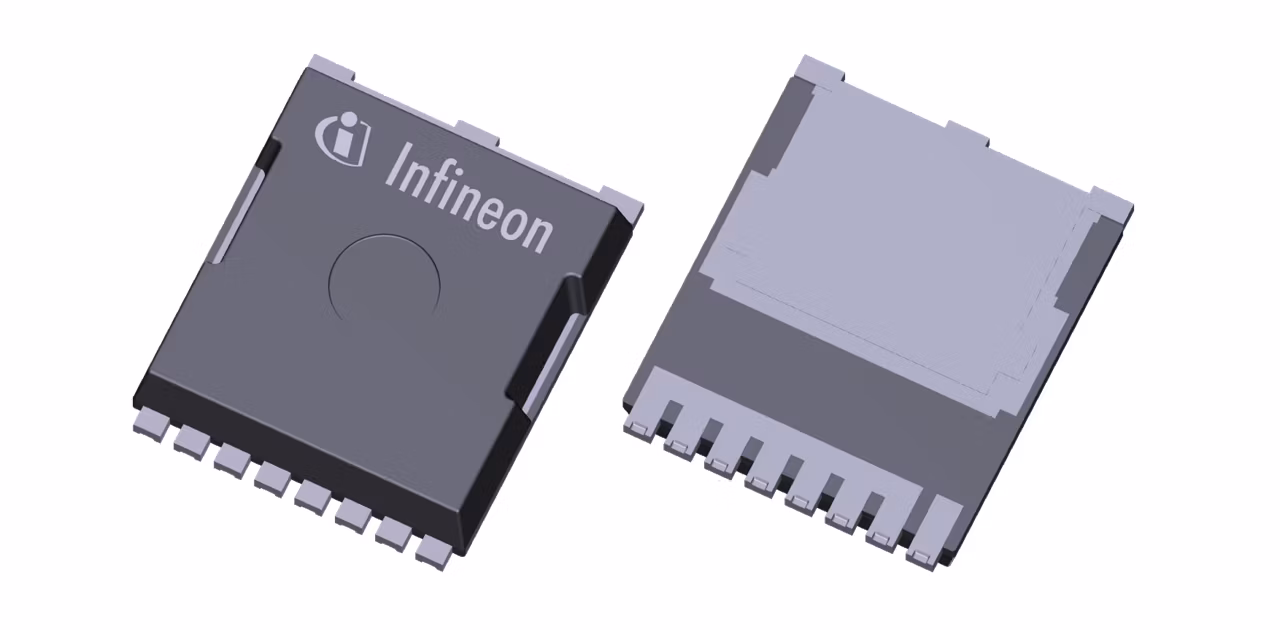

OptiMOS™ 5 linear FET 60 V in a TO-Leadless (TOLL) package, offering the industry’s lowest on-state resistance RDS(on) and wide safe operating area (SOA) at 25˚C, solving the trade-off between on-state resistance and linear mode capability. It is targeted for high in-rush current, harsh applications, such as hot-swap, e-fuse, and protection applications commonly found in telecom and battery management systems (BMS).

Infineon Technologies IPT008N06NM5LF Product Info

16 April 2026 0

Parameters

Battery voltage

24-66 V

Budgetary Price €/1k

2.79

ID (@25°C) max

454 A

ID max

454 A

IDpuls max

1816 A

Mounting

SMD

Operating Temperature range

-55 °C to 150 °C

Package

TOLL (HSOF-8)

Pin Count

8 Pins

Polarity

N

Ptot max

278 W

QG (typ @10V)

185 nC

QG

185 nC

RDS (on) max

0.8 mΩ

RDS (on) (@10V) max

0.8 mΩ

Special Features

Wide SOA

VDS max

60 V

VGS(th) range

2.4 V to 3.6 V

VGS(th)

3.1 V

Apps

EPS with active steering 24 V (commercial vehicles), Cordless power tools and outdoor power equipment, General purpose motor drive

Features

  • Wide safe operating area (SOA)
  • Low RDS(on)
  • High max. pulse current
  • Available in TO-Leadless (TOLL) package

Description

  • Rugged linear mode operation
  • Low conduction losses
  • Higher In-Rush Current, Faster Start-Up
  • Standard pinout for drop-in replacement
