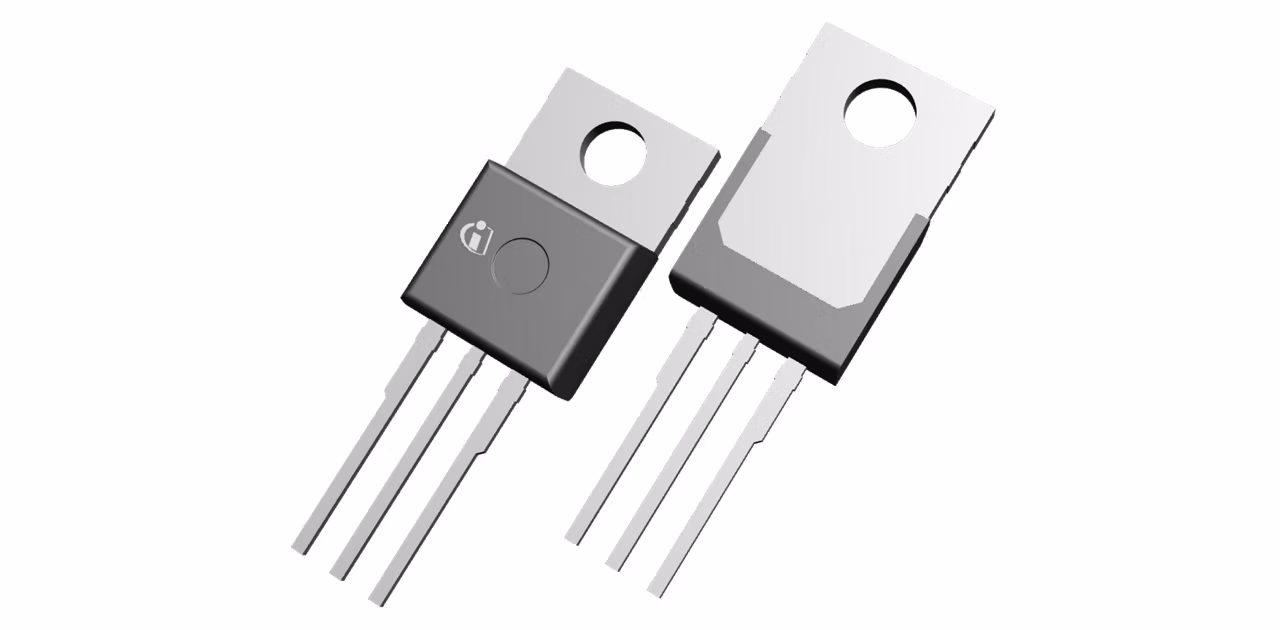

IPP77N06S2-12
  • IPP77N06S2-12

IPP77N06S2-12

Active and preferred

Infineon Technologies IPP77N06S2-12 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.89

Country of Assembly (Last BE site, current, subject to change)

Malaysia

Country of Diffusion (Last FE site, current, subject to change)

Malaysia

ID (@25°C) max

77 A

IDpuls max

308 A

Launch year

2006

Operating Temperature range

-55 °C to 175 °C

Package

TO220 (PG-TO220-3)

Planned to be available until at least

2034

Polarity

N

Ptot max

158 W

QG (typ @10V) max

60 nC

QG (typ @10V)

45 nC

Qualification

Automotive

RDS (on) (@10V) max

12 mΩ

RthJC max

0.95 K/W

Technology

OptiMOS™

VDS max

55 V

VGS(th) range

2.1 V to 4 V

VGS(th)

3 V

Features

  • N-channel - Enhancement mode
  • Automotive AEC Q101 qualified
  • MSL1 up to 260°C peak reflow
  • 175°C operating temperature
  • Green product (RoHS compliant)
  • Ultra low RDS(on)
  • 100% Avalanche tested
  • PPAP Capable Device

Description

  • Lowest DS(on) at 55V in planar tech
  • Highest current capability
  • Lowest switching and conduction losses
  • Highest thermal efficiency
  • Robust packages & superior quality
  • Optimal total gate charge
  • Smaller drivers output stages
