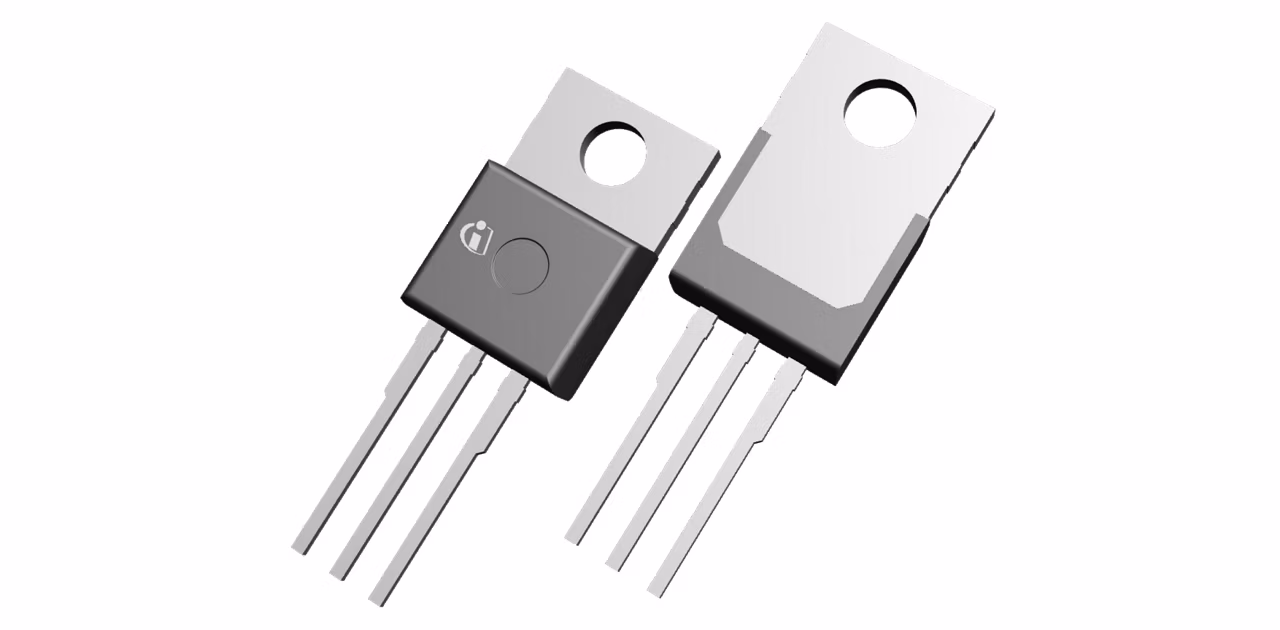

IPP220N25NFD
  • IPP220N25NFD

IPP220N25NFD

OptiMOS™ Fast Diode (FD) 200V, 250V and 300V is optimized for body diode hard commutation. These devices are the perfect choice for hard switching applications such as telecom, industrial power supplies, Class D audio amplifiers, motor control and DC-AC inverter.

Infineon Technologies IPP220N25NFD Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

2.82

Ciss

5320 pF

Coss

299 pF

ID (@25°C) max

61 A

IDpuls max

244 A

Mounting

THT

Operating Temperature range

-55 °C to 175 °C

Package

TO-220

Pin Count

3 Pins

Polarity

N

Ptot max

300 W

QG (typ @10V)

65 nC

RDS (on) (@10V) max

22 mΩ

RthJA max

62 K/W

RthJC max

0.5 K/W

Rth

0.5 K/W

Special Features

Fast Diode

VDS max

250 V

VGS(th) range

2 V to 4 V

VGS(th)

3 V

Apps

Light electric vehicle solutions, Uninterruptible power supplies (UPS)

Features

  • Improved hard commutation ruggedness
  • Optimized hard switching behavior
  • Industry’s lowest Rds(on), Qg and Qrr
  • RoHS compliant - halogen free

Description

  • Highest system reliability
  • System cost reduction
  • Highest efficiency and power density
  • Easy-to-design products
