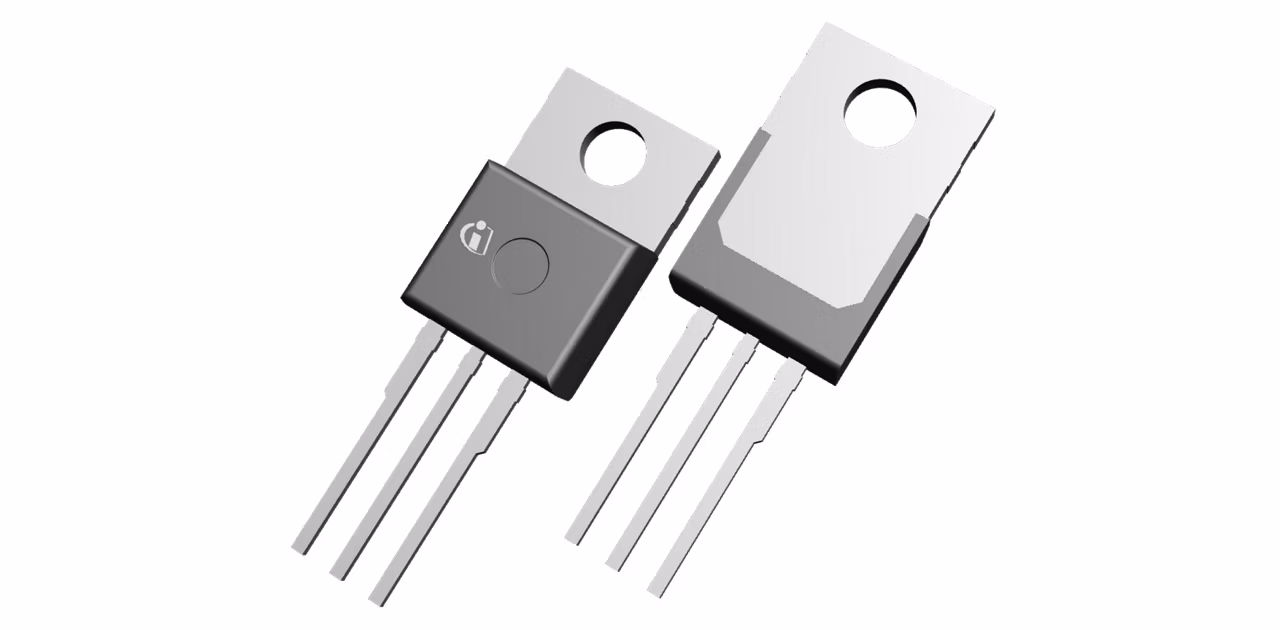

IPP114N12N3 G
  • IPP114N12N3 G

IPP114N12N3 G

Active

The 120V OptiMOS™ family offers at the same time the lowest on-state resistances of the industry and the fastest switching behavior, allowing for the achievement of outstanding performance in a wide range of applications. The 120V OptiMOS™ technology gives new possibilites for optimized solutions.

Infineon Technologies IPP114N12N3 G Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.73

Ciss

3240 pF

Coss

408 pF

ID (@25°C) max

75 A

IDpuls max

300 A

Operating Temperature range

-55 °C to 175 °C

Package

TO-220

Polarity

N

Ptot max

136 W

QG (typ @10V)

49 nC

RDS (on) (@10V) max

11.4 mΩ

Rth

1.1 K/W

VDS max

120 V

VGS(th) range

2 V to 4 V

VGS(th)

3 V

Features

  • Excellent switching performance
  • World’s lowest R DS(on)
  • Low Q g and Q gd
  • Excellent gate charge
  • RoHS compliant-halogen free
  • MSL1 rated

Description

  • Environmentally friendly
  • Increased efficiency
  • Highest power density
  • Less paralleling required
  • Smallest board-space consumption
  • Easy-to-design products
