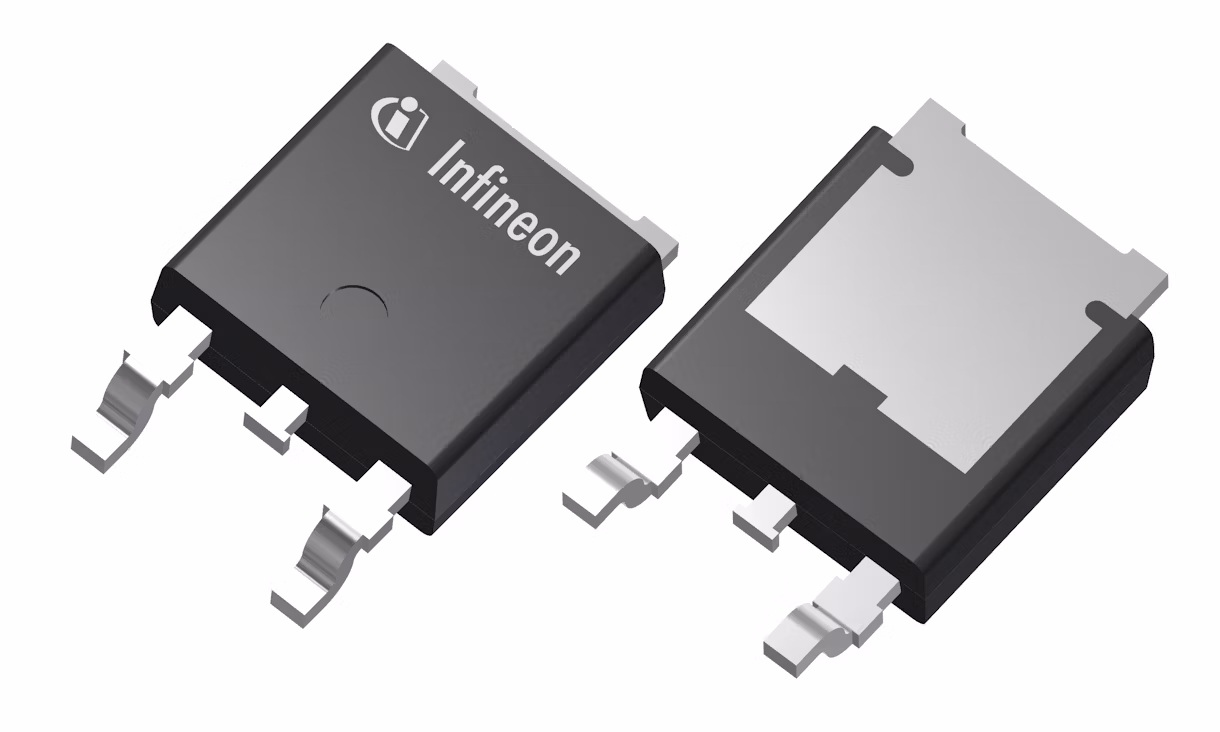

IPD80R2K7C3A
  • IPD80R2K7C3A

IPD80R2K7C3A

Active

The CoolMOS™ C3A technology was designed to meet the growing demands of higher system voltages in the area of electric vehicles, such as PHEVs and BEV.

Infineon Technologies IPD80R2K7C3A Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.48

ID (@25°C) max

2 A

IDpuls max

6 A

Mounting

SMT

Operating Temperature range

-55 °C to 175 °C

Package

DPAK

Pin Count

3 Pins

Polarity

N

Ptot max

42 W

QG

12 nC

QG (typ @10V) max

12 nC

Qualification

Automotive

RDS (on) (@ Tj = 25°C) max

2700 mΩ

RDS (on) (@ Tj = 25°C)

2400 mΩ

RthJA max

62 K/W

RthJC max

3 K/W

Special Features

Price-performance

Technology

CoolMOS™ C3A

Topology

Flyback

VDS max

800 V

VGS(th) min

2.1 V

VGS(th) max

3.9 V

Apps

Automotive battery management system (BMS) - high-voltage, EV traction inverter, DC-DC converter high-voltage, On-board charging (OBC)

Features

  • CoolMOS™ 3 series
  • low gate charge
  • low stored energy in COSS
  • improved FOM Ron*A
  • automotive qualification
  • Fieldproven CoolMOS™ quality
  • CoolMOS™ since 1998

Description

  • higher switching frequencies
  • higher power density
  • higher efficiency
  • MOSFET suits hard & resonant topologies
