Budgetary Price €/1k |
0.42 |
Country of Assembly (Last BE site, current, subject to change) |
Indonesia, Malaysia |
Country of Diffusion (Last FE site, current, subject to change) |
Austria, Germany |
ID (@25°C) max |
100 A |
IDpuls max |
400 A |
Launch year |
2016 |
Operating Temperature range |
-55 °C to 175 °C |

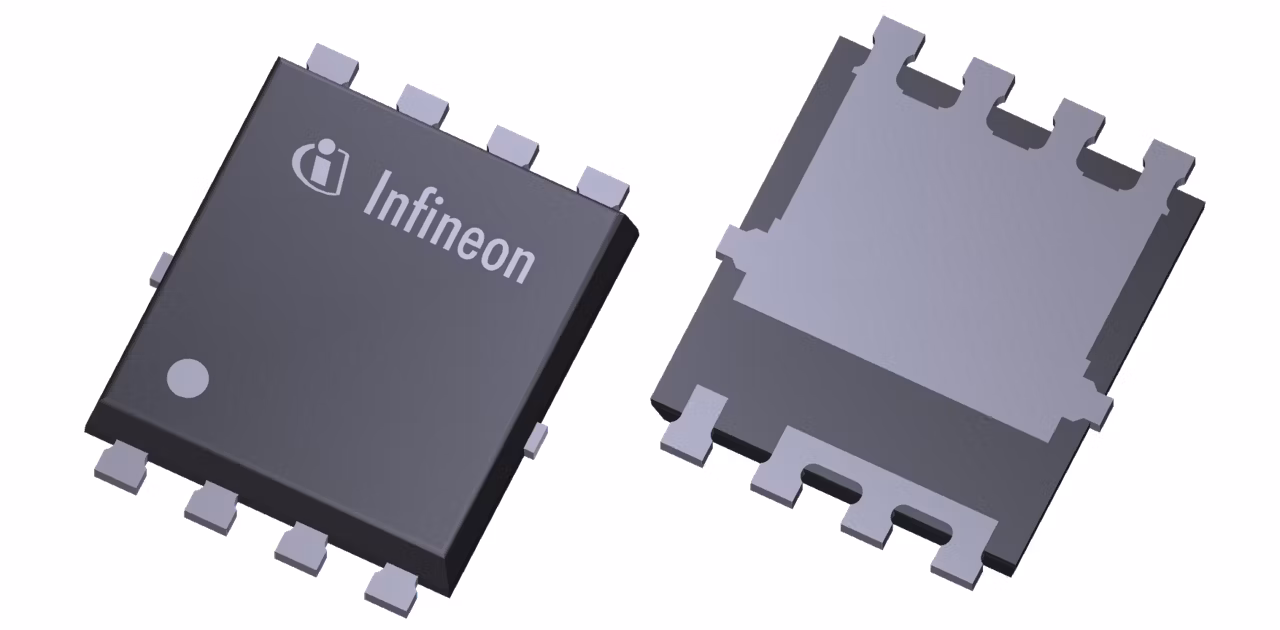

Package |
single SS08 (PG-TDSON-8) |
Planned to be available until at least |
2027 |
Polarity |
N |
Ptot max |
100 W |
QG (typ @10V) max |
81 nC |
QG (typ @10V) |
61 nC |
Qualification |
Automotive |
RDS (on) (@10V) max |
1.9 mΩ |
RthJC max |
1.5 K/W |
Technology |
OptiMOS™5 |
VDS max |
40 V |
VGS(th) range |
1.2 V to 2 V |
VGS(th) |
1.6 V |
