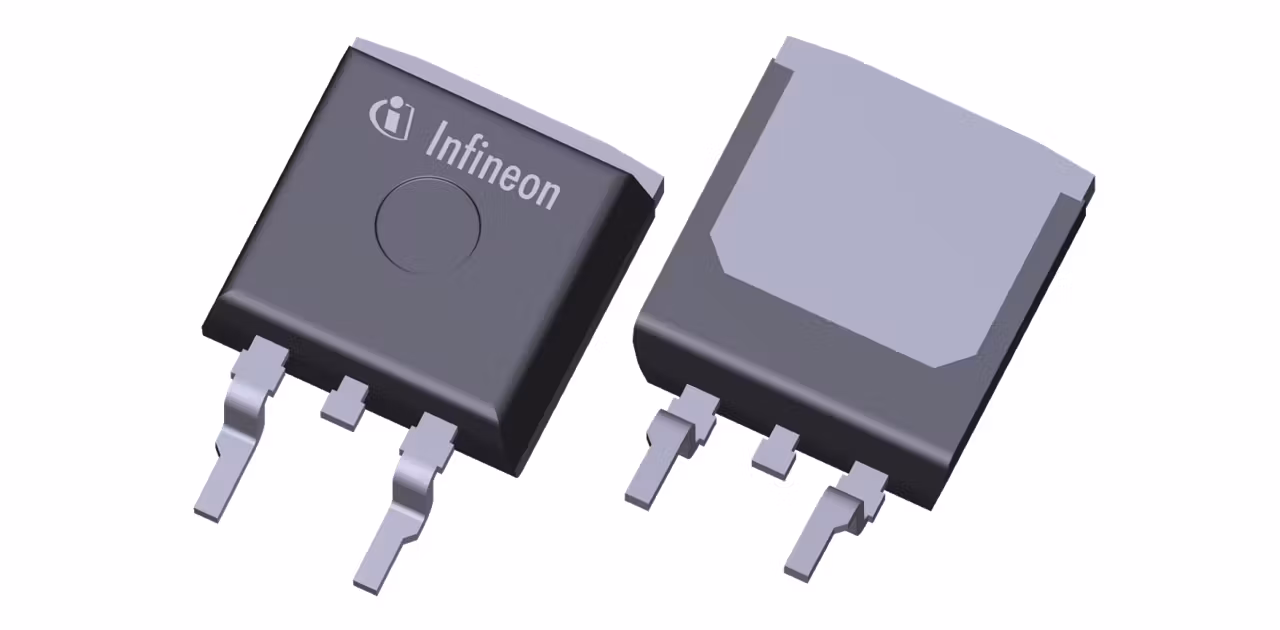

IPB320N20N3 G
  • IPB320N20N3 G

IPB320N20N3 G

Active and preferred

Infineon's 200V OptiMOS™ products are performance leading benchmark technologies, perfectly suited for synchronous rectification in 48V systems,DC-DC converters, uninterruptable power supplies (UPS) and inverters for DC motor drives.

Infineon Technologies IPB320N20N3 G Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

1.12

Ciss

1770 pF

Coss

135 pF

ID (@25°C) max

34 A

IDpuls max

136 A

Operating Temperature range

-55 °C to 175 °C

Package

D2PAK (TO-263)

Polarity

N

Ptot max

136 W

QG (typ @10V)

22 nC

RDS (on) (@10V) max

32 mΩ

Rth

1.1 K/W

VDS max

200 V

VGS(th) range

2 V to 4 V

VGS(th)

3 V

Apps

Consumer electronics, Battery energy storage (BESS)

Features

  • Industry’s lowest R DS(on)
  • Lowest Qg and Qgd
  • Lowest FOM RoHS compliant - MSL 1 rated

Description

  • Highest efficiency
  • Highest power density
  • Lowest board space consumption
  • Minimal device paralleling required
  • System cost improvement
  • Environmentally friendly
  • Easy-to-design-in products
