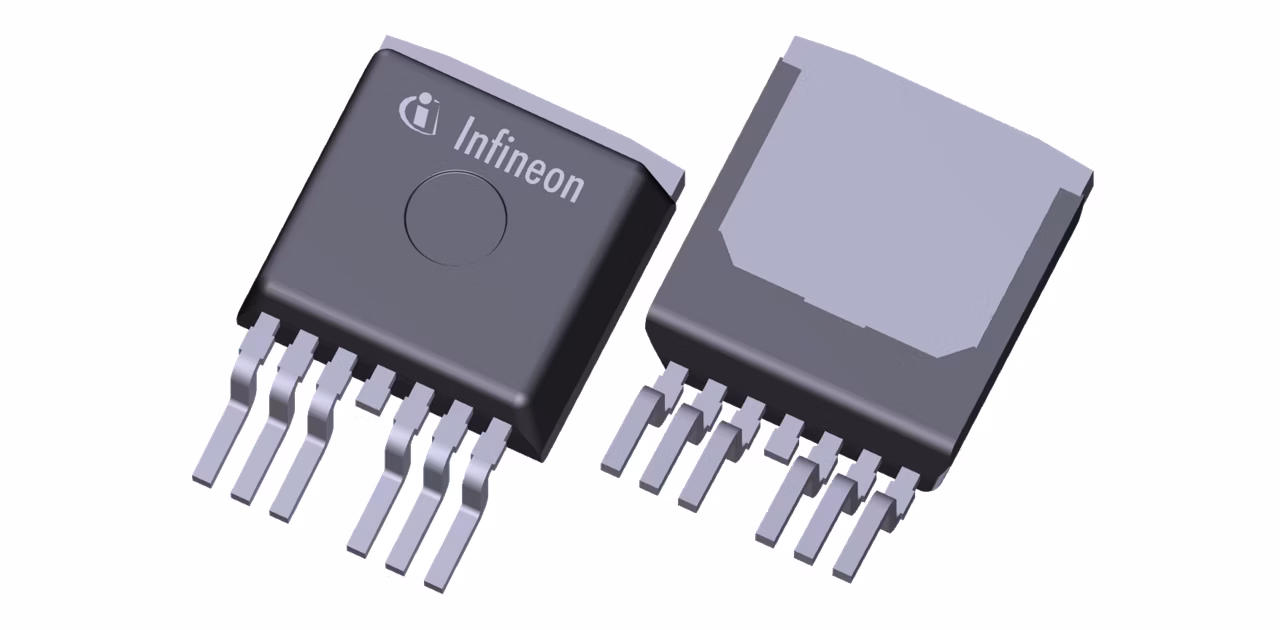

IPB180N04S4L-H0

Active and preferred

Infineon Technologies IPB180N04S4L-H0 Product Info

16 April 2026 0

Budgetary Price €/1k	1.19
Country of Assembly (Last BE site, current, subject to change)	Malaysia
Country of Diffusion (Last FE site, current, subject to change)	Malaysia
ID (@25°C) max	180 A
IDpuls max	720 A
Launch year	2013
Operating Temperature range	-55 °C to 175 °C
Package	D2PAK (PG-TO263-7)
Planned to be available until at least	2032
Polarity	N
Ptot max	250 W
QG (typ @10V) max	310 nC
QG (typ @10V)	239 nC
Qualification	Automotive
RDS (on) (@10V) max	1 mΩ
RthJC max	0.6 K/W
Technology	OptiMOS™T2
VDS max	40 V
VGS(th) range	1.2 V to 2 V
VGS(th)	1.7 V

Domain controller for ADAS & autonomous driving
