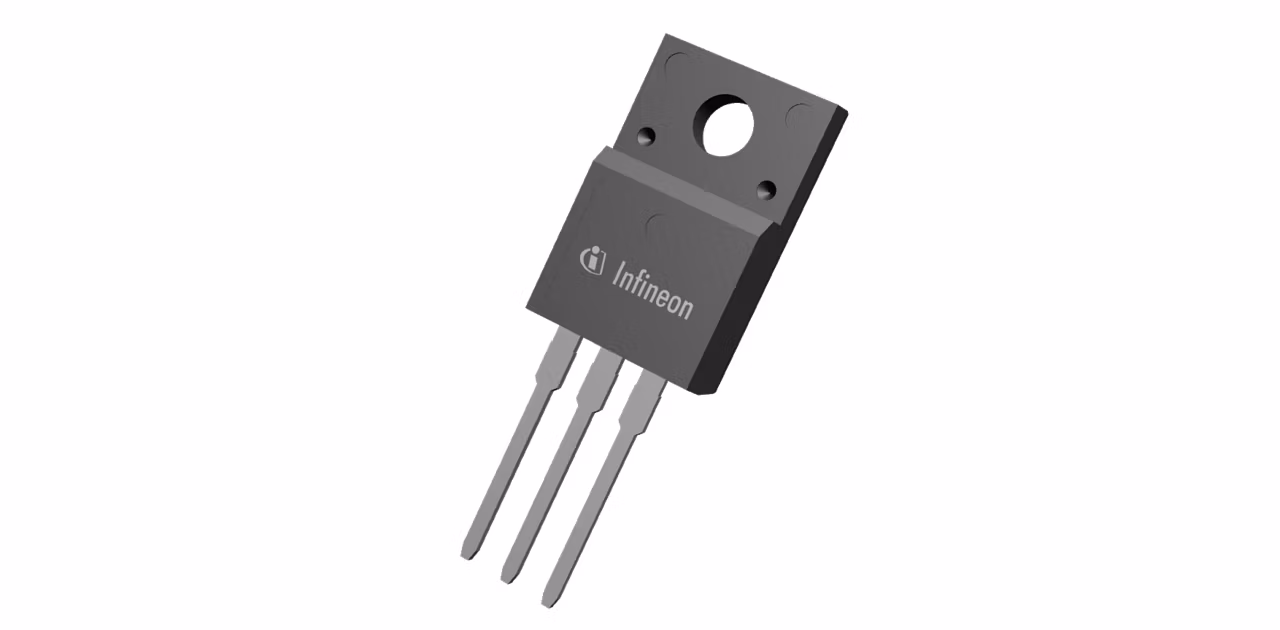

IPA126N10NM3S
  • IPA126N10NM3S

IPA126N10NM3S

Infineon’s OptiMOS™ 3 power MOSFET 100V is designed to meet the requirements for improved system efficiency while reducing system cost. With low a on-state resistance of 12.6mOhm in the TO-220 FullPAK package portfolio extension, this MOSFET is optimized for TV power supply, desktop, adapter and gaming applications. With increasing power density as well as improving efficiency the IPA126N10NM3S MOSFET is the perfect fit solution for synchronous rectification.

Infineon Technologies IPA126N10NM3S Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.69

ID (@ TC=25°C) max

39 A

ID (@25°C) max

39 A

IDpuls max

156 A

Operating Temperature range

-55 °C to 175 °C

Package

TO-220 FullPAK

Polarity

N

Ptot max

33 W

QG (typ @10V)

26 nC

RDS (on) (@10V) max

12.6 mΩ

VDS max

100 V

VGS(th) range

2 V to 3.5 V

VGS(th)

2.7 V

Features

  • Low voltage overshoot
  • Low on-state resistance (RDS(on))
  • Electrically isolated package

Description

  • Less paralleling required
  • No heat to circuit board
  • Less heat generation
  • Fits TO-220 footprint
