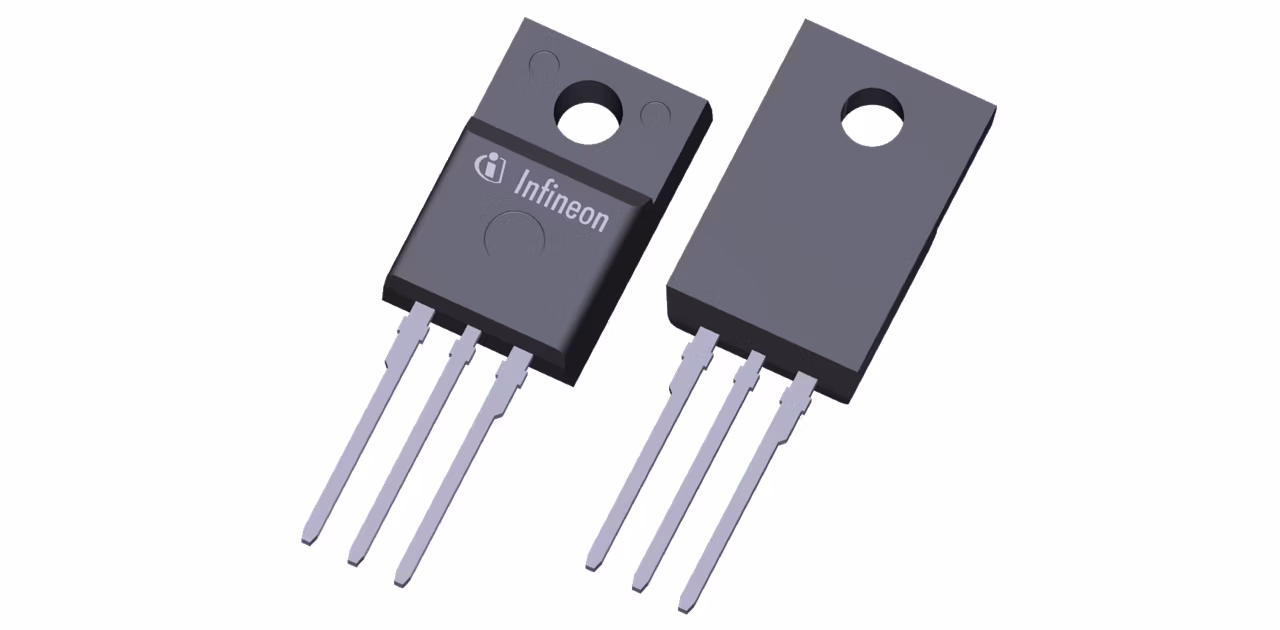

IPA060N06N
  • IPA060N06N

IPA060N06N

Active and preferred

OptiMOS™ 5 60V is optimized for synchronous rectification in switched mode power supplies (SMPS) such as those found in servers and desktops and tablet charger. In addition these devices are a perfect choice for a broad range of industrial applications including motor control, solar micro inverter and fast switching DC-DC converter.

Infineon Technologies IPA060N06N Product Info

16 April 2026 1

Parameters

Budgetary Price €/1k

0.54

Ciss

2000 pF

Coss

490 pF

ID (@25°C) max

45 A

IDpuls max

180 A

Mounting

THT

Operating Temperature range

-55 °C to 175 °C

Package

TO-220 FullPAK

Pin Count

3 Pins

Polarity

N

Ptot max

33 W

QG (typ @10V)

27 nC

RDS (on) (@10V) max

6 mΩ

RthJC max

4.6 K/W

Rth

4.6 K/W

VDS max

60 V

VGS(th) range

2.1 V to 3.3 V

VGS(th)

2.8 V

Features

  • Optimized for synchronous rectification
  • 40% lower RDS than alternative devices
  • 40% FOM over similar devices
  • RoHS compliant - halogen free
  • MSL1 rated

Description

  • Highest system efficiency
  • Less paralleling required
  • Increased power density
  • System cost reduction
  • Very low voltage overshoot
