IPA052N08NM5S
  • IPA052N08NM5S

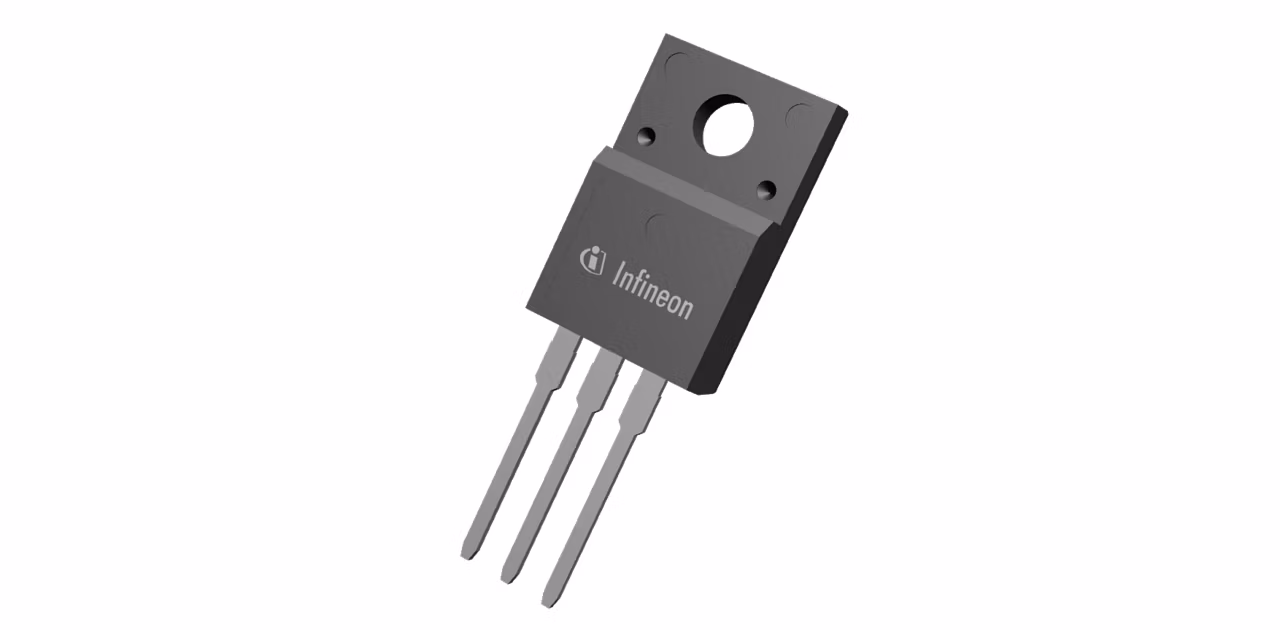

IPA052N08NM5S

Active

This 80V OptiMOS™ power MOSFET (IPA052N08NM5S) is made to meet the requirements for improved system efficiency while at the same time reducing system cost. Offering low RDS(on) of 5.2mOhm, Infineon’s TO-220 FullPAK package portfolio extension of MOSFETs features increased power density as well as improved efficiency. Serving as an ideal solution for synchronous rectification, OptiMOS™ power MOSFETs in TO-220 FullPAK are optimized for TV power supply, adapter, desktop and gaming applications.

Infineon Technologies IPA052N08NM5S Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.77

ID (@ TC=25°C) max

64 A

ID (@25°C) max

64 A

IDpuls max

256 A

Operating Temperature range

-55 °C to 175 °C

Package

TO-220 FullPAK

Polarity

N

Ptot max

38 W

QG (typ @10V)

42 nC, 42 nC

RDS (on) (@10V) max

5.2 mΩ

VDS max

80 V

VGS(th) range

2.2 V to 3.8 V

VGS(th)

3 V

Features

  • Low voltage overshoot
  • Low on-state resistance (RDS(on))
  • Electrically isolated package

Description

  • Less paralleling required
  • No heat to circuit board
  • Less heat generation
  • Fits TO-220 footprint
