IPA050N10NM5S
  • IPA050N10NM5S

IPA050N10NM5S

Active

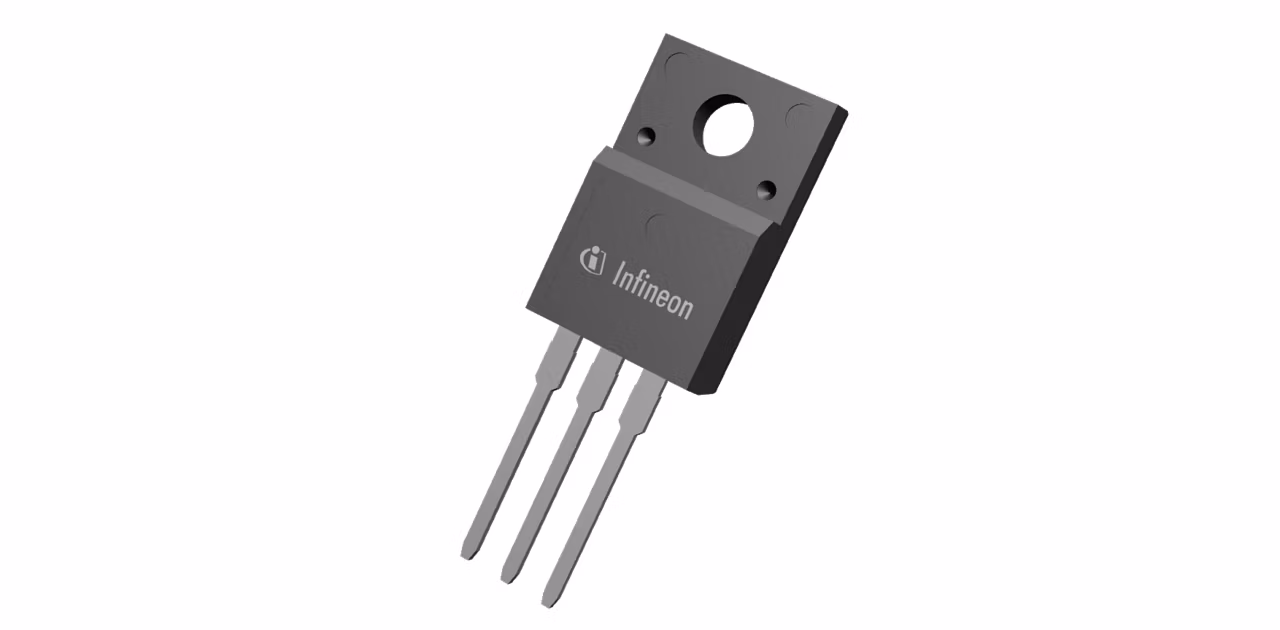

The OptiMOS™ 5 power MOSFET 100V in TO-220 FullPAK package (IPA050N10NM5S) features increased power density, improved efficiency with low RDS(on) of 5.0mOhm and lower system costs. The TO-220 FullPAK package portfolio of Infineon’s power MOSFETs presents a perfect solution for synchronous rectification. These products are optimized for applications such as TV power supply, adapter, desktop and gaming.

Infineon Technologies IPA050N10NM5S Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.83

ID (@ TC=25°C) max

66 A

ID (@25°C) max

66 A

IDpuls max

264 A

Operating Temperature range

-55 °C to 175 °C

Package

TO-220 FullPAK

Polarity

N

Ptot max

38 W

QG (typ @10V)

51 nC

RDS (on) (@10V) max

5 mΩ

VDS max

100 V

VGS(th) range

2.2 V to 3.8 V

VGS(th)

3 V

Apps

Consumer electronics, Complete system solutions for smart TVs, DIN rail power supply solutions

Features

  • Low voltage overshoot
  • Low on-state resistance (RDS(on))
  • Electrically isolated package

Description

  • Less paralleling required
  • No heat to circuit board
  • Less heat generation
  • Fits TO-220 footprint
