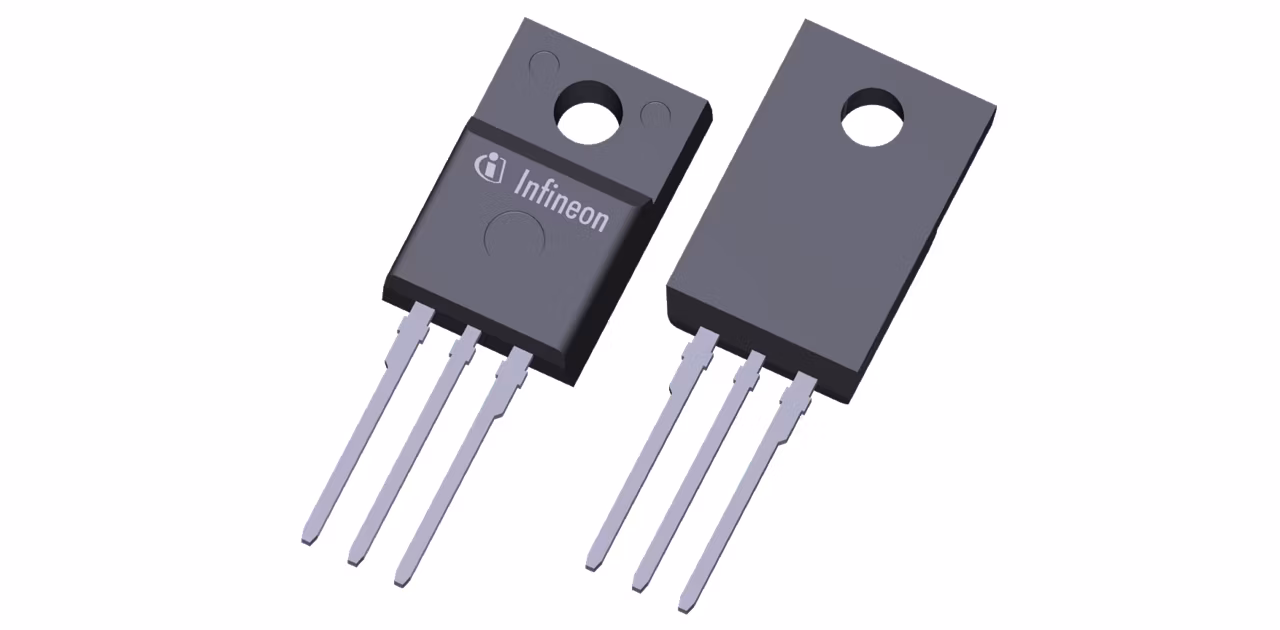

IPA045N10N3 G
  • IPA045N10N3 G

IPA045N10N3 G

Active

Infineon's 100V OptiMOS™ power MOSFETs offer superior solutions for high efficiency, high power-density SMPS. Compared to the next best technology this family achieves a reduction of 30% in both R DS(on) and FOM (figure of merit).

Infineon Technologies IPA045N10N3 G Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

1.03

Ciss

6320 pF

Coss

1100 pF

ID (@25°C) max

64 A

IDpuls max

256 A

Operating Temperature range

-55 °C to 175 °C

Package

TO-220 FullPAK

Polarity

N

Ptot max

39 W

QG (typ @10V)

88 nC

RDS (on) (@10V) max

4.5 mΩ

Rth

3.8 K/W

VDS max

100 V

VGS(th) range

2 V to 3.5 V

VGS(th)

2.7 V

Apps

DIN rail power supply solutions

Features

  • Excellent switching performance
  • World’s lowest R DS(on)
  • Low Q g and Q gd
  • Excellent gate charge
  • RoHS compliant-halogen free
  • MSL1 rated

Description

  • Environmentally friendly
  • Increased efficiency
  • Highest power density
  • Less paralleling required
  • Smallest board-space consumption
  • Easy-to-design products
