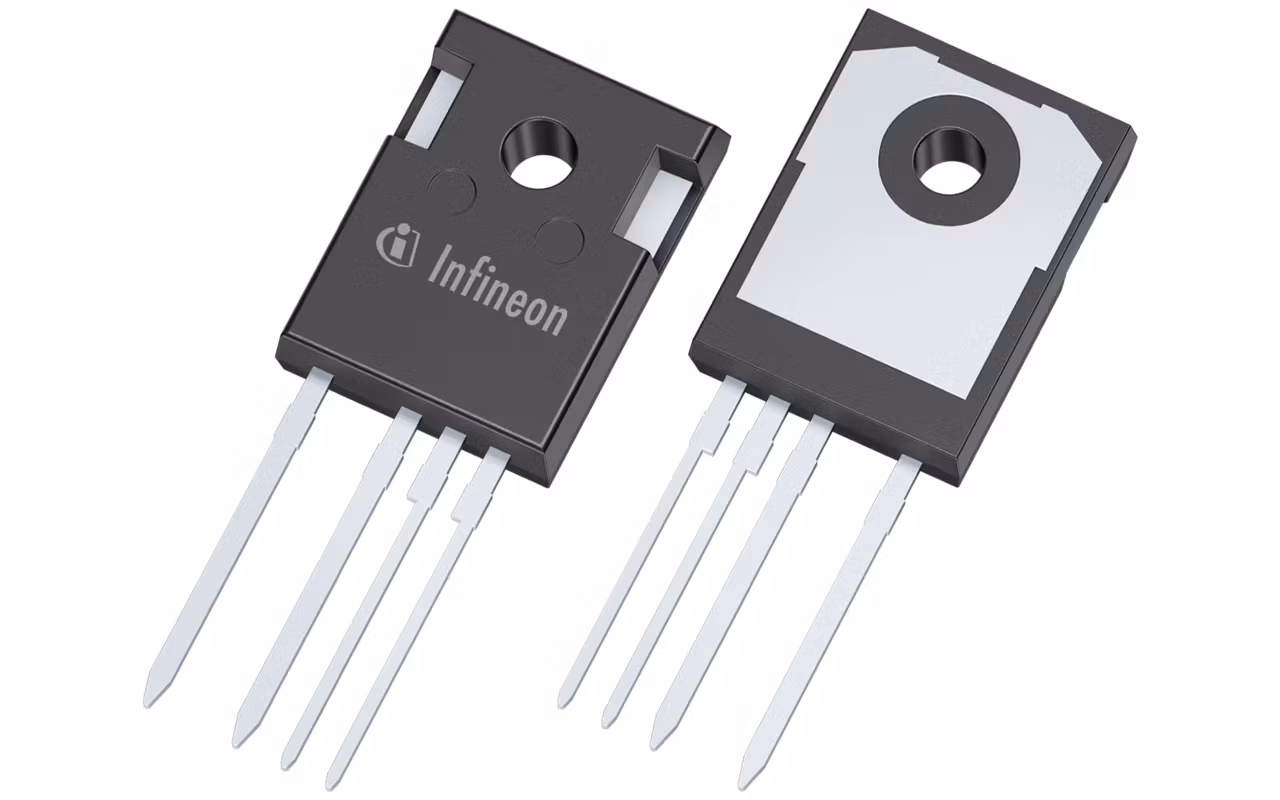

IMZA65R048M1H

CoolSiC™ MOSFET technology leverages the strong physical characteristics of silicon carbide, adding unique features that increase the device’s performance, robustness, and ease of use. This 650V CoolSiC™ is built on a state-of-the-art trench MOSFET, optimized to allow no compromises in getting both the lowest switching losses for given on-state resistance in the application and the highest reliability in operation.

Infineon Technologies IMZA65R048M1H Product Info

16 April 2026 0

Parameters

ID (@25°C) max	100 A
Mounting	THT
Operating Temperature range	-55 °C to 175 °C
Package	TO247 4-pin (asymmetric leads)
Polarity	N
Ptot max	125 W
Qualification	Industrial
RDS (on) (@ Tj = 25°C) max	63 mΩ
RDS (on) (@ Tj = 25°C)	48 mΩ
Technology	CoolSiC™ G1
VDS max	650 V

Apps

Electric vehicle drivetrain system, Light electric vehicle solutions, Complete system solutions for smart TVs, EV charging, 1-phase string inverter solutions

Features

1st generation CoolSiC™
low gate charge
low stored energy in C_OSS
negligable Q_rr
flat C_OSS
flat R_DS(on) over temperature

Description

higher efficiency in hard switching
higher efficiency in soft switching
hard commutation on body diode
high reliability
Kelvin source
Kelvin source
increased creepage
