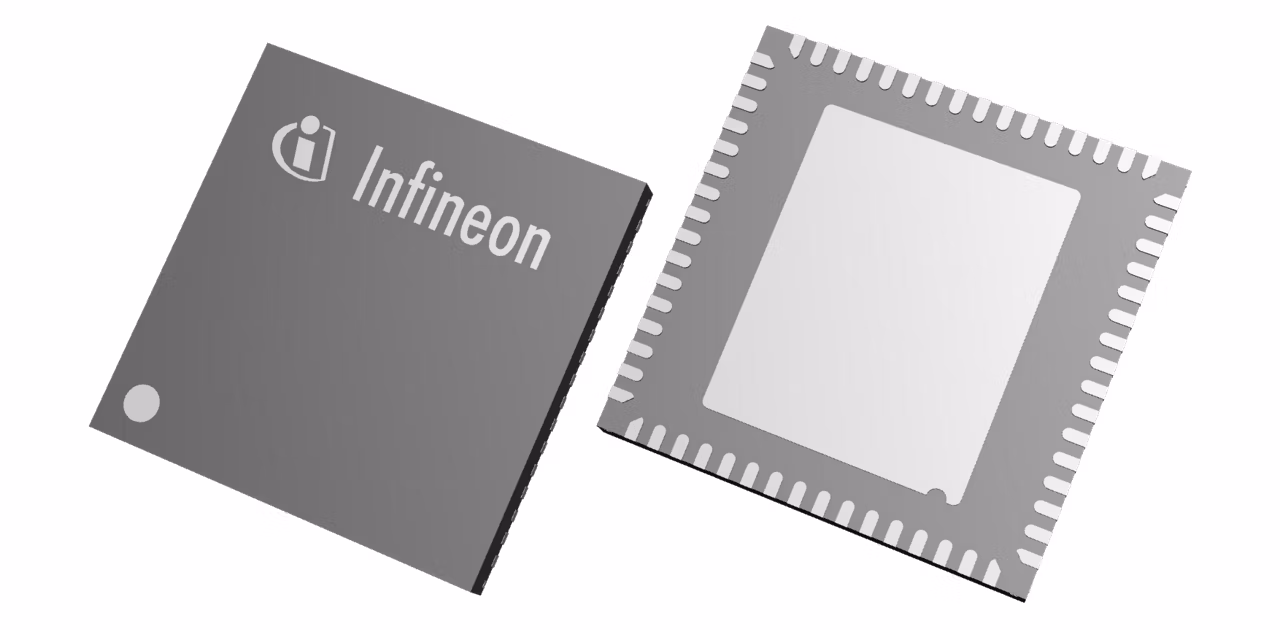

IMD701A-Q064X128-AA
  • IMD701A-Q064X128-AA

IMD701A-Q064X128-AA

Active

MOTIX™ IMD701A is a high performance motor controller integrating XMC1404 microcontroller with 6EDL7141 3-phase gate driver IC in one package. XMC1404, ARM® Cortex®-M0 based microcontroller incorporates dedicated features to improve system performance of motor drives control. An integrated MATH Co-Processor clocked at 96MHz enhances calculations including division and trigonometric functions commonly used in Field Oriented Control of PMSM.

Infineon Technologies IMD701A-Q064X128-AA Product Info

16 April 2026 1

Parameters

Channels

6

Configuration

MCU + three phase

Flash

128 kByte

GPIO

20

Isolation Type

Level shift

Operating Voltage range

5.5 V to 60 V

Output Current (Source)

1.5 A

Output Current (Sink)

1.5 A

Qualification

Industrial

Technology

MOTIX™ MCU (SiP)

Temperature

- 40°C - 125°C

Apps

Domestic robots

Features

  • XMC1404 with MATH co-processor
  • Integrated power supplies
  • Adjustable slew rate
  • Programmable gate drive parameters
  • 3x current shunt amplifier
  • Complete motor control protection suite

Description

  • Reduced external component and PCB area
  • Optimized efficiency and EMI
  • flexibility to use different MOSFET’s
  • accurate integrated current sense amps
  • High dynamic range to improve resolution
  • Improved reliability and fault detection
