IMBG65R022M1H
  • IMBG65R022M1H

IMBG65R022M1H

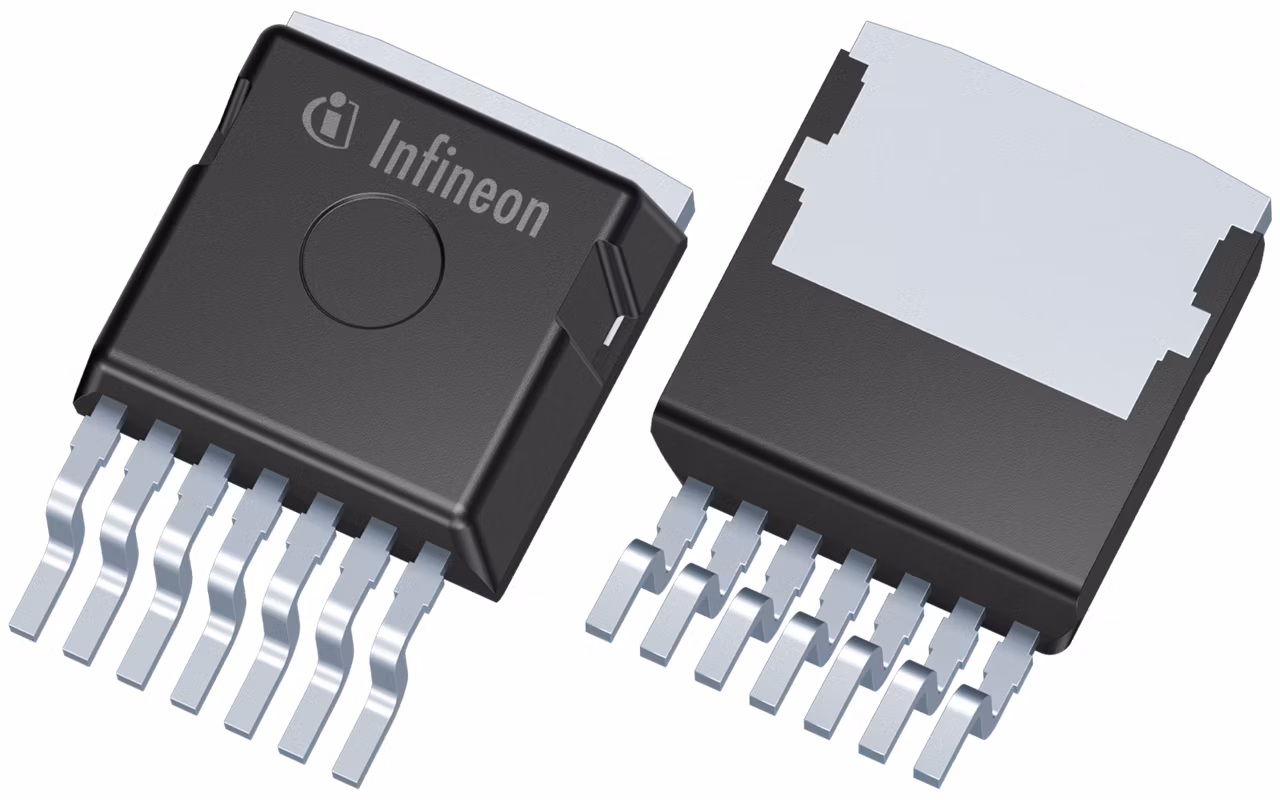

CoolSiC™ MOSFET technology leverages the strong physical characteristics of silicon carbide, adding unique features that increase the device performance, robustness, and ease of use. The IMBG65R022M1H CoolSiC™ MOSFET 650V is a compact SMD 7 pin SiC MOSFET built on a state-of-the-art Infineon SiC trench technology and used in high power applications. It is optimized to enable max system performance, compactness and reliability.

Infineon Technologies IMBG65R022M1H Product Info

16 April 2026 0

Parameters

ID (@25°C) max

194 A

Mounting

SMT

Operating Temperature range

-55 °C to 175 °C

Package

D2PAK 7-pin

Polarity

N

Ptot max

300 W

Qualification

Industrial

RDS (on) (@ Tj = 25°C) max

30 mΩ

RDS (on) (@ Tj = 25°C)

22 mΩ

Technology

CoolSiC™ G1

VDS max

650 V

Apps

Medium voltage IBC (48 V), Automotive, DIN rail power supply solutions, 1-phase string inverter solutions

Features

  • 1st generation CoolSiC™
  • low gate charge
  • low stored energy in COSS
  • negligable Qrr
  • flat COSS
  • flat RDS(on) over temperature

Description

  • higher efficiency in hard switching
  • higher efficiency in soft switching
  • hard commutation on body diode
  • high reliability
  • Kelvin source
  • Kelvin source
