IMBG120R350M1H
  • IMBG120R350M1H

IMBG120R350M1H

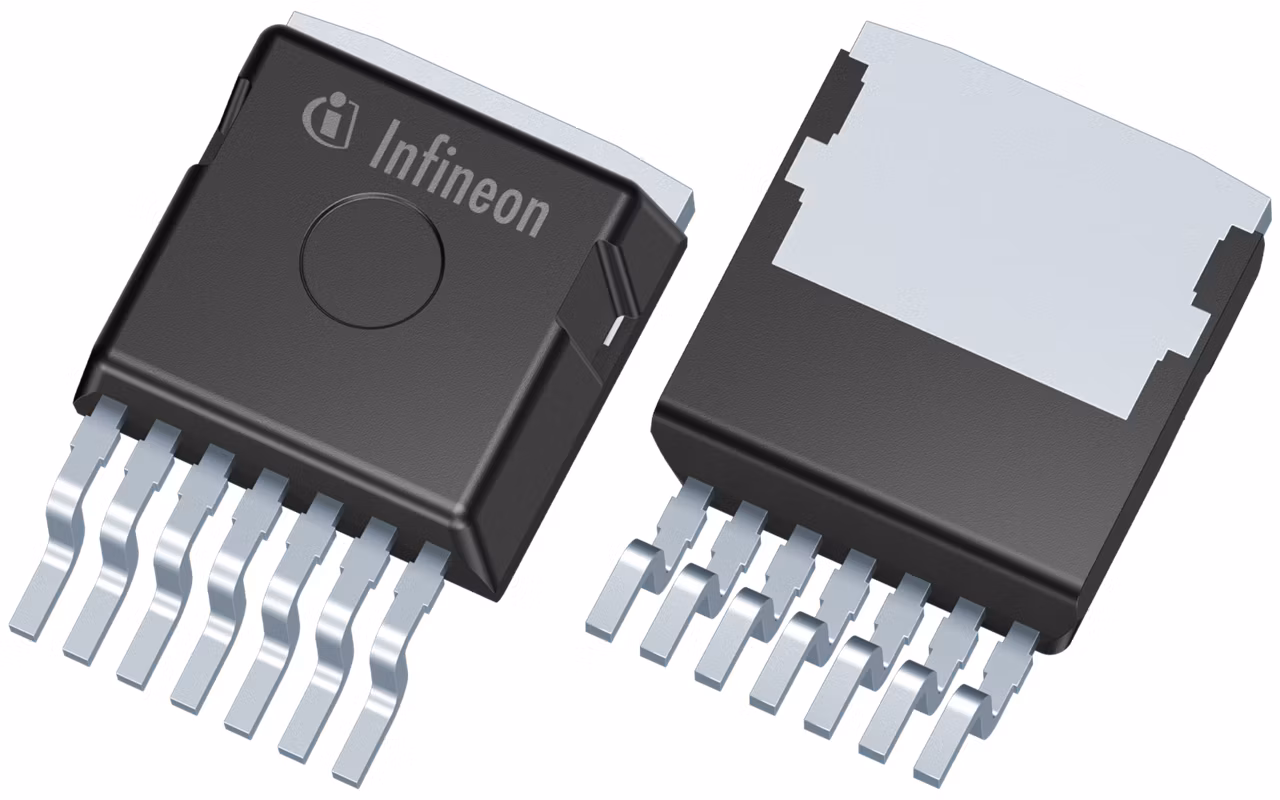

The CoolSiC™1200 V, 350 mΩ SiC MOSFET in a D2PAK-7L (TO-263-7) package build on a state-of-the-art trench semiconductor process optimized to combine performance with reliability in operation. The low power losses of CoolSiC technology, combined with .XT interconnection technology in a new 1200 V optimized SMD package, enables top efficiency and passive cooling potential in applications such as drives, chargers and industrial powers supplies.

Infineon Technologies IMBG120R350M1H Product Info

16 April 2026 12

Parameters

Ciss

196 pF

Coss

9 nF

ID (@25°C) max

4.7 A

Mounting

SMD

Operating Temperature range

-55 °C to 175 °C

Package

TO-263-7

Pin Count

7 Pins

Polarity

N

Ptot (@ TA=25°C) max

65 W

Qgd

1.2 nC

QG

5.9 nC

Qualification

Industrial

RDS (on) (@ Tj = 25°C)

350 mΩ

RthJA max

62 K/W

RthJC max

2.3 K/W

Technology

CoolSiC™ G1

Tj max

175 °C

VDS max

1200 V

Apps

EV charging, Industrial motor drives and controls, General purpose motor drive, LED lighting system design, Hydrogen electrolysis, Photovoltaic, Uninterruptible power supplies (UPS)

Features

  • Very Low switching losses
  • Short-circuit withstand time, 3 µs
  • Fully controllable dV/dt
  • Benchmark gate threshold voltage
  • VGS(th) = 4.5 V
  • Robust against parasitic turn-on
  • 0V turn-off gate voltage applicable
  • Robust diode for hard commutation
  • .XT interconnection technology
  • Package creepage distances > 6.1 mm
  • And clearance distances, > 6.1 mm
  • Sense pin for optimized switching
