IMBG120R090M1H

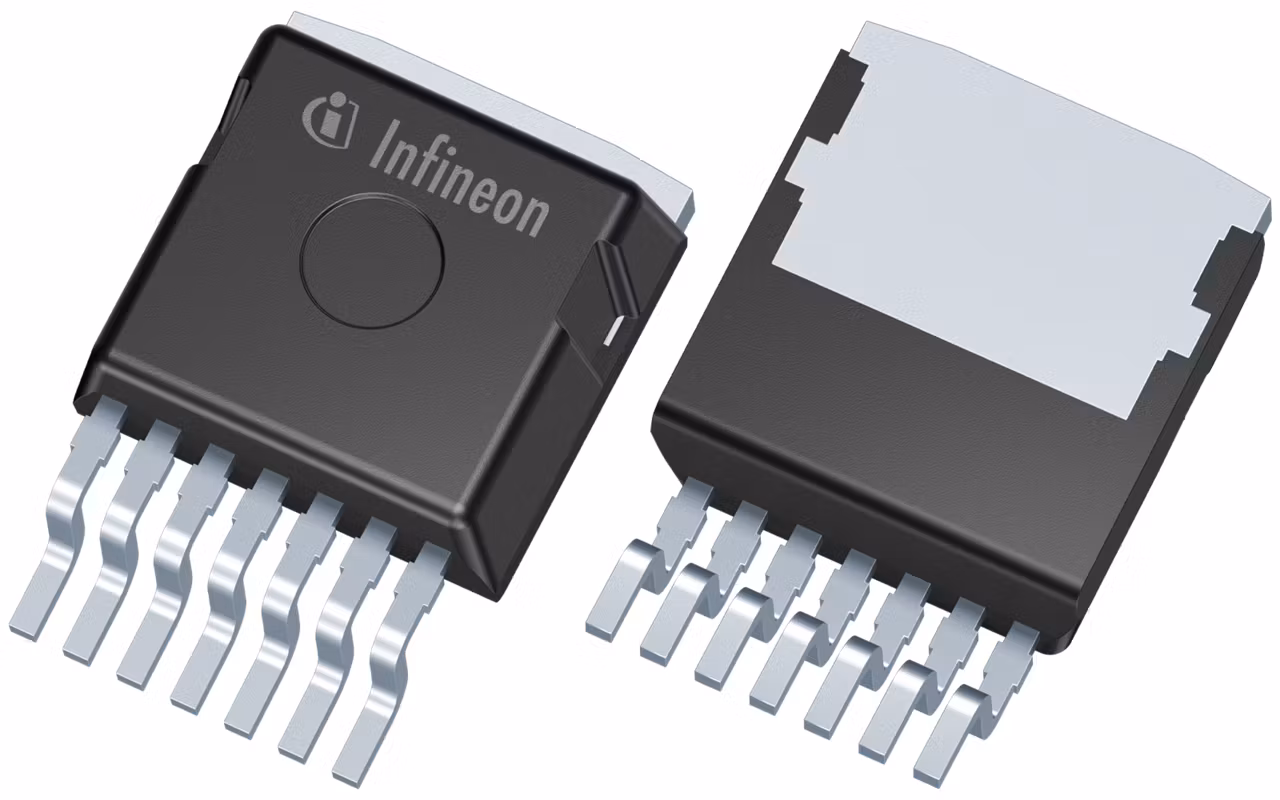

The CoolSiC™ 1200 V, 90 mΩ SiC MOSFET in a D2PAK-7L (TO-263-7) package build on a state-of-the-art trench semiconductor process optimized to combine performance with reliability in operation. The low power losses of CoolSiC technology, combined with .XT interconnection technology in a new 1200 V optimized SMD package, enables top efficiency and passive cooling potential in applications such as drives, chargers and industrial powers supplies.

Infineon Technologies IMBG120R090M1H Product Info

16 April 2026 0

Parameters

Ciss	763 pF
Coss	39 pF
ID (@25°C) max	26 A
Mounting	SMD
Operating Temperature range	-55 °C to 175 °C
Package	TO-263-7
Pin Count	7 Pins
Polarity	N
Ptot (@ TA=25°C) max	136 W
Qgd	4.8 nC
QG	23 nC
Qualification	Industrial
RDS (on) (@ Tj = 25°C)	90 mΩ
RthJA max	62 K/W
RthJC max	1.1 K/W
Technology	CoolSiC™ G1
Tj max	175 °C
VDS max	1200 V

Apps

Automotive secondary power distribution unit, EV charging, Industrial motor drives and controls, Servo motor drive and control, Photovoltaic, 1-phase string inverter solutions, Uninterruptible power supplies (UPS)

Features

Very Low switching losses
Short-circuit withstand time, 3 µs
Fully controllable dV/dt
Benchmark gate threshold voltage
V_GS(th)= 4.5 V
Robust against parasitic turn-on
0V turn-off gate voltage applicable
Robust diode for hard commutation
.XT interconnection technology
Package creepage distances > 6.1 mm
And clearance distances, > 6.1 mm
Sense pin for optimized switching
