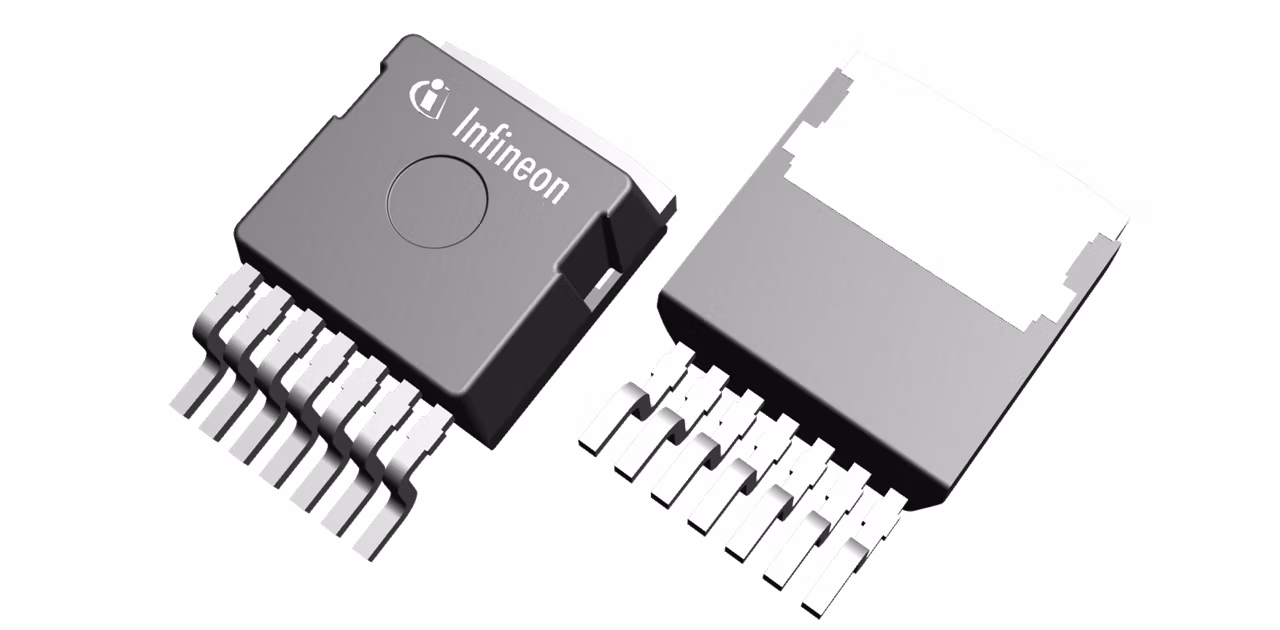

IMBF170R450M1

Active and preferred

CoolSiC™ 1700 V, 450 mΩ SiC MOSFET in a TO-263-7 high creepage package is optimized for fly-back topologies to be used in auxiliary power supplies connected to DC-link voltages 600 V up to 1000 V in numerous power applications.

Infineon Technologies IMBF170R450M1 Product Info

16 April 2026 1

Parameters

Ciss	610 pF
Coss	16 pF
ID (@25°C) max	9.8 A
Mounting	SMD
Operating Temperature range	-55 °C to 175 °C
Package	TO-263-7
Pin Count	7 Pins
Polarity	N
Ptot (@ TA=25°C) max	107 W
Qgd	5.9 nC
QG	11 nC
Qualification	Industrial
RDS (on) (@ Tj = 25°C)	450 mΩ
RthJA max	62 K/W
RthJC max	1.3 K/W
Technology	CoolSiC™ G1
Tj max	175 °C
VDS max	1700 V

Apps

DIN rail power supply solutions, Industrial motor drives and controls, General purpose motor drive, Photovoltaic, Residential air conditioning, Power conversion

Features

Optimized for fly-back topologies
Extremely low switching loss
12 V / 0 V gate-source voltage
Compatible with fly-back controller
Fully controllable dV/dt
SMD package
Enhanced creepage distances > 7 mm
And clearance distances, > 7 mm
