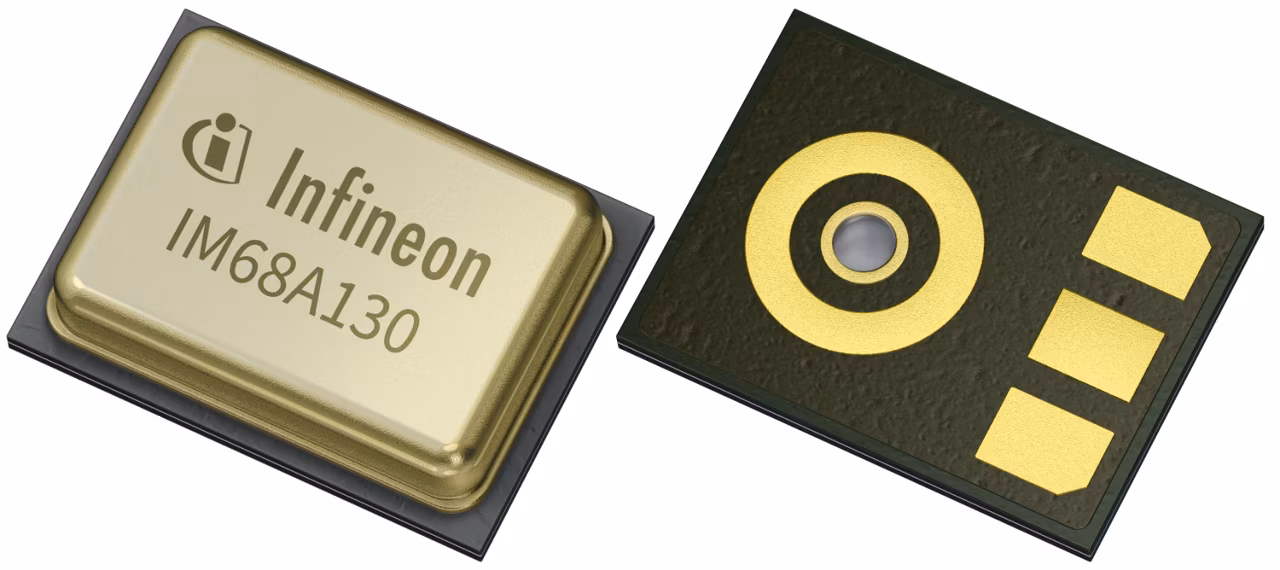

IM68A130

Active and preferred

The IM68A130 is a high performance, single-ended, analog MEMS microphone designed for applications which require a low LFRO (10Hz), a high SNR (low self-noise), and low distortion (high AOP).The high signal-to-noise ratio (SNR) of 68dB(A) enables far field and low volume audio pick-up. The flat frequency response and tight manufacturing tolerance improve the performance of Active Noise Cancellation (ANC) and multi-microphone array applications.The high performance analog microphone ASIC contains an extremely low noise preamplifier providing constant current consumption (110µA) over VDD.

Infineon Technologies IM68A130 Product Info

16 April 2026 11

Parameters

AEC-Q103-003 qualified	on demand
AOP	130 dBSPL
Current Consumption	110 µA
Green	RoHS compliant, Halogen free
Interfaces	Analog single-ended
LFRO	10 Hz
Package dimensions	3.35 x 2.50 x 0.98 mm³
Sensitivity	-38 dBV
SNR	68 dB(A)
Supply Voltage	2.40 - 3.60 V

Apps

Consumer electronics, Semiconductor solutions for home entertainment applications, Health and lifestyle, Consumer Wearables, General purpose motor drive

Features

Surface mount package: 3.35mm x 2.5mm x 0.98mm
Analog single-ended output
Flat frequency response with low-frequency roll-off at 10Hz
Acoustic overload point at 130dBSPL
Signal-to-noise ratio of 68dB(A) SNR
Narrow sensitivity and phase tolerances
Omnidirectional pickup pattern
