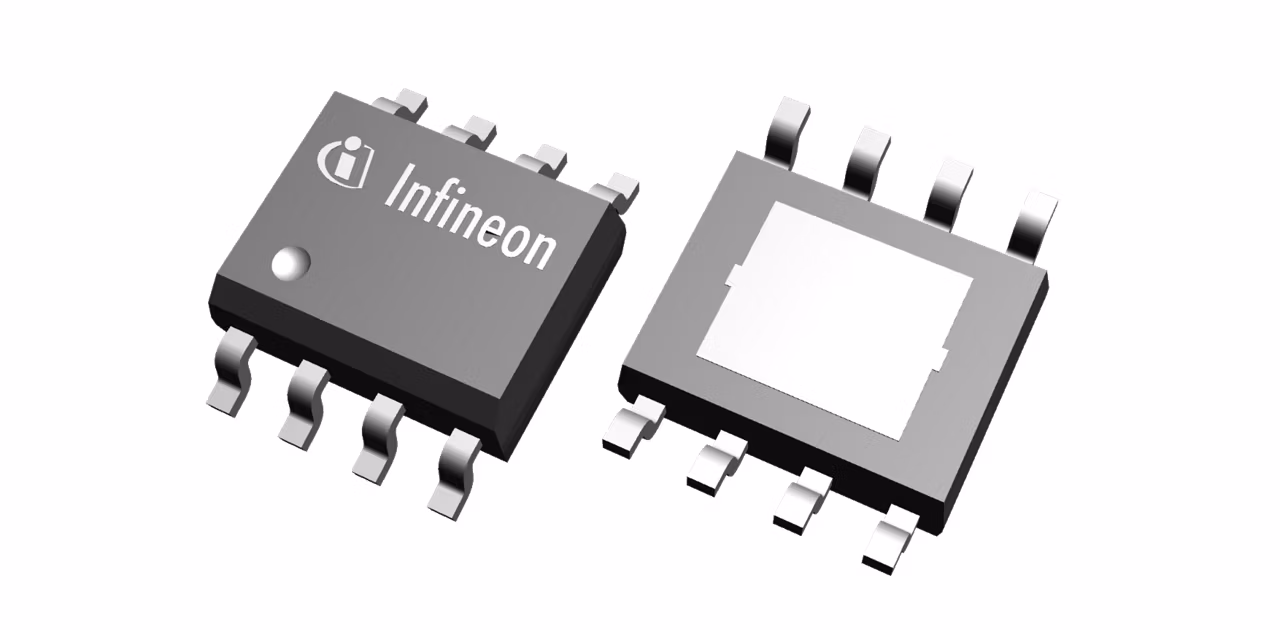

ILD8150E
  • ILD8150E

ILD8150E

Active and preferred

The ILD8150E is a 80V DC-DC converter IC, designed to drive high power LEDs. For applications operating close to safe extra-low voltage (SELV) limits, it provides a high safety voltage margin. The buck LED driver IC is tailored for LEDs in general lighting applications with average currents up to 1.5A using a high-side integrated switch. Several performance and protection features provide ideal fit for professional LED lighting.

Infineon Technologies ILD8150E Product Info

16 April 2026 0

Parameters

Dimming

Hybrid dimming

Iout max

1500 mA

Language

SPICE

Qualification

Industrial

Type

Buck

VS range

8 V to 80 V

Apps

Automotive LED lighting systems, DIN rail power supply solutions, LED lighting system design

Features

  • Input voltage range: 8VDC to 80VDC
  • Up to 1.5A average output current
  • Efficiency values of more than 95%
  • Maximum duty cycle up to 99%
  • Up to 2 MHz switching frequency
  • Soft-start
  • Analog dimming 100%-12.5%
  • Hybrid Dimming: 12.5%-0.5%
  • Dim-to-off
  • Adjustable Current via Shunt Resistor
  • Typical 3% output current accuracy
  • Overtemperature protection
