IGOT60R070D1

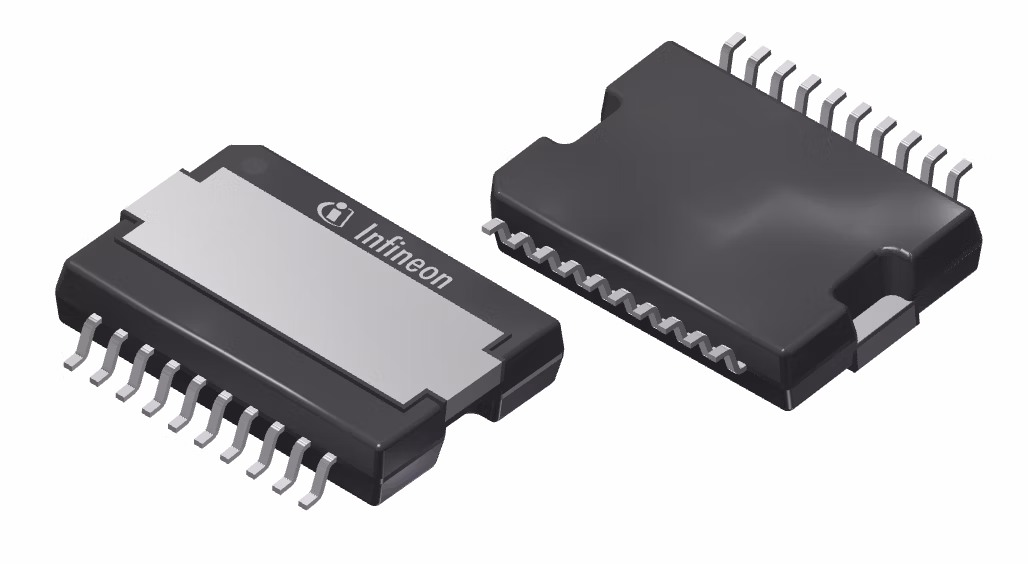

The IGOT60R070D1 enables more compact topologies and increased efficiency at higher frequency operation. It is certified through an extensive GaN-specific qualification process, exceeding industry standards. Housed in the leaded SMD DSO-20-87 package, it is designed for optimal power dissipation required in modern data centers, server , telecom , renewables, and numerous other applications.

Infineon Technologies IGOT60R070D1 Product Info

16 April 2026 0

Parameters

Green	RoHS compliant, Halogen free
ID (@ TA=25°C) max	31 A
IDpuls (@25°C) max	60 A
Language	SPICE
Package	DSO-20-87
Product Name	IGOT60R070D1
Ptot max	125 W
QG	5.8 nC
Qualification	Industrial
RDS (on) (typ)	55 mΩ
VBRDSS max	600 V
VDS max	600 V
VGS(th) range	0.9 V to 1.6 V
VGS(th)	1.2 V

Apps

Electric vehicle drivetrain system, Telecommunications infrastructure, DIN rail power supply solutions, 1-phase string inverter solutions, Uninterruptible power supplies (UPS)

Features

E-mode HEMT – normally OFF
Ultrafast switching
No reverse-recovery charge
Capable of reverse conduction
Low gate charge, low output charge
Superior commutation ruggedness
JEDEC qualified (JESD47, JESD22)
Low dynamic R_DS(on)
Top-side cooled

Description

Improves system efficiency
Improves power density
Enables higher operating frequency
System cost reduction savings
Reduces EMI
