IGLD60R190D1
  • IGLD60R190D1

IGLD60R190D1

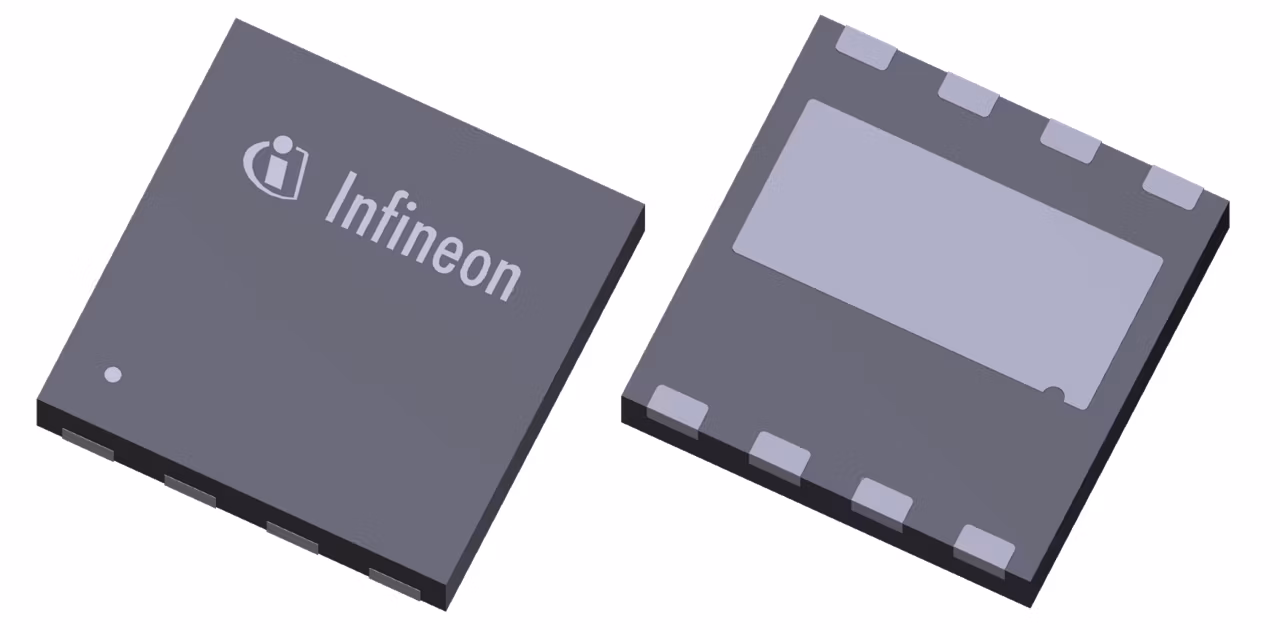

The IGLD60R190D1 offers fast turn-on and turn-off speed, minimum switching losses and enables simple half-bridge topologies with the highest efficiency. It is certified through an extensive GaN-specific qualification process, exceeding industry standards. Housed in the bottom-side cooled LSON-8 (DFN 8x8) package, it enables ideal power disspation as required in modern USB-C adapter and chargers, or server and data center applications.

Infineon Technologies IGLD60R190D1 Product Info

16 April 2026 0

Parameters

Green

RoHS compliant, Halogen free

ID (@ TA=25°C) max

10 A

IDpuls (@25°C) max

23 A

Language

SPICE

Package

LSON-8-1

Product Name

IGLD60R190D1

QG

3.2 nC

Qualification

Industrial

RDS (on) (typ)

140 mΩ

VBRDSS max

600 V

VDS max

600 V

VGS(th) range

0.9 V to 1.6 V

VGS(th)

1.2 V

Apps

Medium voltage IBC (48 V), Telecommunications infrastructure, Power adapters and chargers, LED lighting system design

Features

  • E-mode HEMT – normally OFF switch
  • Ultra fast switching
  • No reverse-recovery charge
  • Capable of reverse conduction
  • Low gate charge, low output charge
  • Superior commutation ruggedness
  • JEDEC qualified (JESD47, JESD22)
  • Bottom-side cooled

Description

  • Improves system efficiency
  • Improves power density
  • Enables higher operating frequency
  • System cost reduction savings
  • Reduces EMI
