IDWD75G120C5
  • IDWD75G120C5

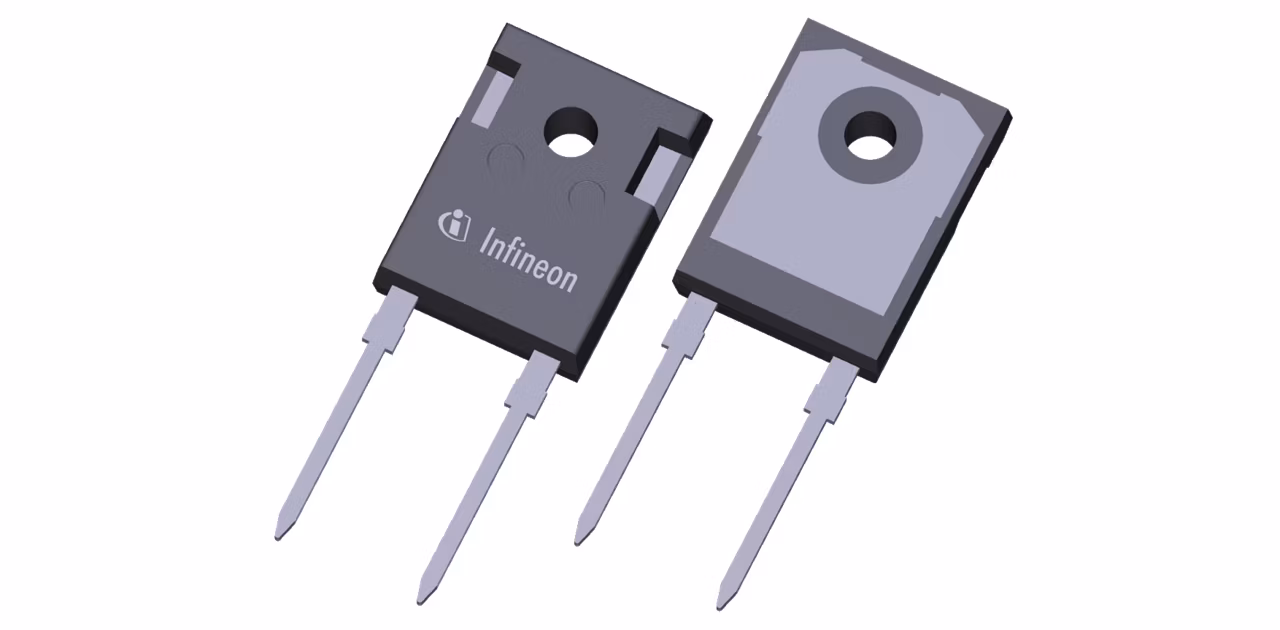

IDWD75G120C5

Active and preferred

CoolSiC™ Schottky diode 1200 V, 75 A G5 in a TO-247-2 pin package enables efficient and compact designs with enhanced robustness and reliability. This device family includes avalanche ruggedness and features the highest current class of up to 150 A, which is unique in the market.

Infineon Technologies IDWD75G120C5 Product Info

16 April 2026 0

Parameters

I(FSM) max

440 A

IF max

186 A

IR

39 µA

Package

PG-TO247-2

Ptot max

683 W

QC

330 nC

Qualification

Industrial

RthJC

0.17 K/W

VF

1.5 V

Apps

EV charging, 3-phase hybrid inverter solutions, 3-phase string inverter solutions, Online UPS

Features

  • Avalanche rated
  • .XT interconnection technology
  • No reverse recovery current
  • No forward recovery voltage
  • Temp. independent switching behavior
  • Low VF at high operating temperature
  • Tight forward voltage distribution
  • High surge current capability

Description

  • Easy plug and play with silicon diodes
  • System efficiency boost vs. Si diodes
  • Enabling higher frequency solutions
  • Increased power density solutions
  • System reliability improvement
