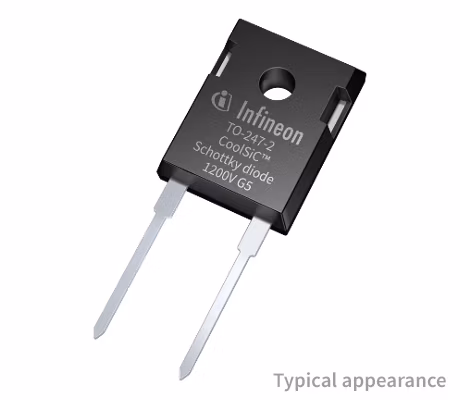

IDWD15G120C5

CoolSiC™ Schottky diode 1200 V, 15 A G5 in a TO-247 real 2-pin package, for easy exchange of bipolar Si diodes. The expanded 8.7 mm creepage and clearance distances offer extra safety in high-pollution environments. Combined with a Si IGBT or super-junction MOSFET a CoolSiC™ diode raises efficiency up to 1% compared to next best Si diode alternative. The output power of PFC and DC-DC stages can thus be increased, by 40% or more.

Infineon Technologies IDWD15G120C5 Product Info

16 April 2026 0

Parameters

I(FSM) max	170 A
IF max	15 A
IR	8 A
Package	PG-TO247-2
Ptot max	200 W
QC	82 nC
Qualification	Industrial
RthJC	0.6 K/W
VF	1.4 V

Apps

HVAC control module, EV charging, Photovoltaic, Power optimizer solutions for scalable PV systems, Power conversion, Uninterruptible power supplies (UPS)

Features

No reverse recovery current
No forward recovery voltage
Temp.-independ. switching behavior
Low forward voltage*
*even at high operating temperature
Tight forward voltage distribution
High surge current capability
