IDW60C65D1

Active and preferred

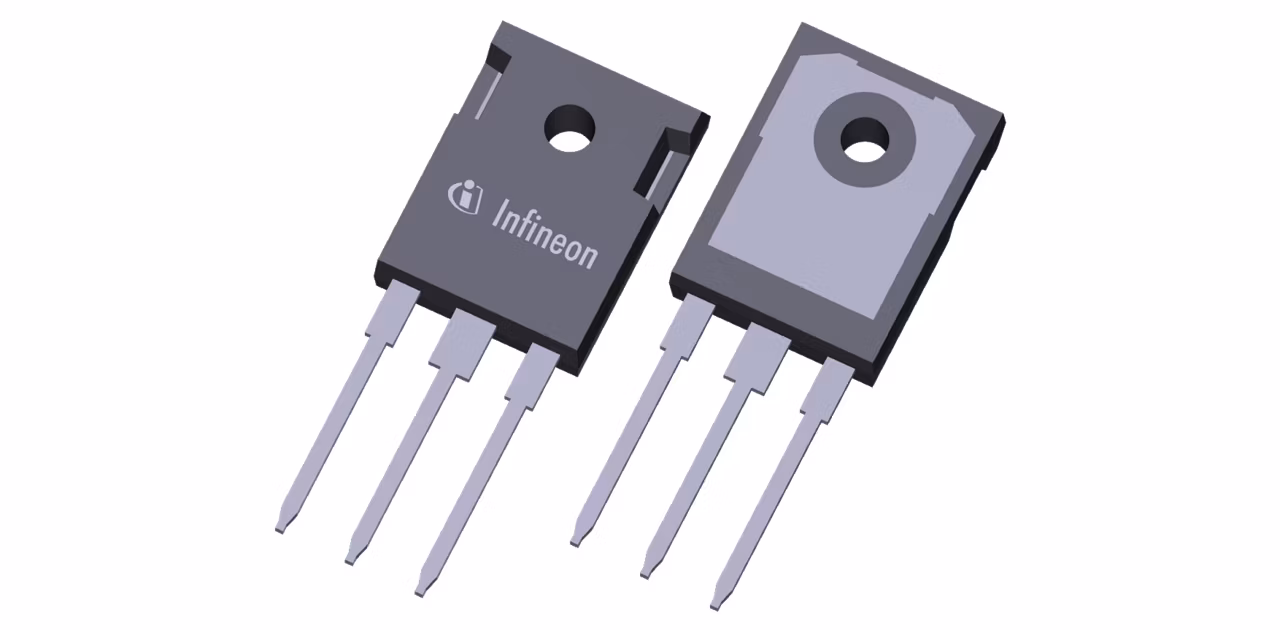

Rapid 1 switching 650 V, 60 A emitter controlled power silicon diodes in common cathode configuration and in a TO-247 package, allowing design optimization for more compact dimensions, easier assembly and consequently lower costs.

Infineon Technologies IDW60C65D1 Product Info

16 April 2026 0

Parameters

Configuration	Common Cathode
I(FSM) max	240 A
IF max	60 A
IF	30 A
IR max	40 µA
Irrm	5.4 A
Mounting	THT
Operating Temperature range	-40 °C to 175 °C
Package	TO-247
Ptot max	142 W
Qrr	0.45 µC
RthJC max	1.06 K/W
trr	115 ns
VF max	1.7 V
VF	1.35 V
Voltage Class max	650 V

Apps

Server power supply units (PSU), Automotive e-compressor - high-voltage, Telecommunications infrastructure, Home appliances, Residential air conditioning, Uninterruptible power supplies (UPS)

Features

1.35 V temperature-stable V_F
Highest softness-factor for:
Highest softness-factor for:
Low EMI filtering
For 18 kHz to 40 kHz applications
Lowest I_rrmfor:
Lowest losses on boost switch
Low thermal resistance
