IDW30E65D1
  • IDW30E65D1

IDW30E65D1

Active and preferred

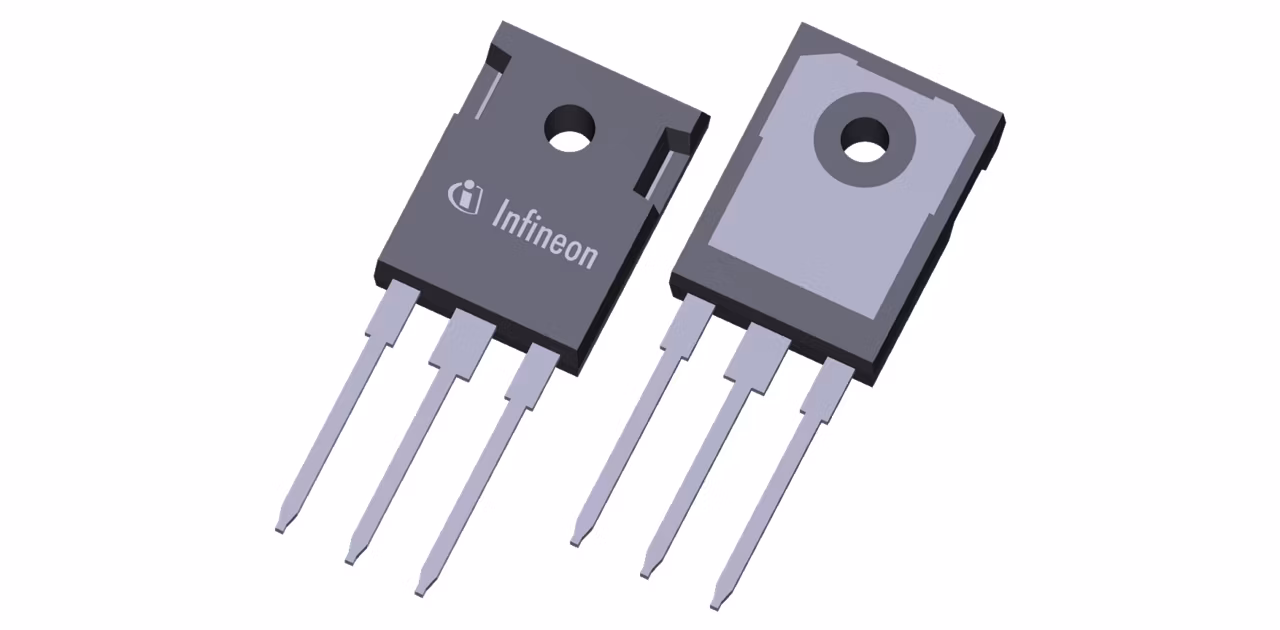

Rapid 1 switching 650 V, 30 A emitter controlled power silicon diodes in a TO-247 package is perfectly suited for Power Factor Correction (PFC) topologies, typically found in major home appliances such as air conditioners and washing machines.

Infineon Technologies IDW30E65D1 Product Info

16 April 2026 0

Parameters

Configuration

Single

I(FSM) max

240 A

IF max

60 A

IF

30 A

IR max

40 µA

Irrm

5.4 A

Mounting

THT

Operating Temperature range

-40 °C to 175 °C

Package

TO-247

Ptot max

142 W

Qrr

0.45 µC

RthJC max

1.06 K/W

trr

115 ns

VF max

1.35 V

VF

1.35 V

Voltage Class max

650 V

Apps

Home appliances, Residential air conditioning, Uninterruptible power supplies (UPS)

Features

  • 1.35 V temperature-stable VF
  • Highest softness-factor
  • EMI filtering
  • Lowest Irrm
  • low turn-on losses on the boost
  • Switching between 18 kHz & 40 kHz
