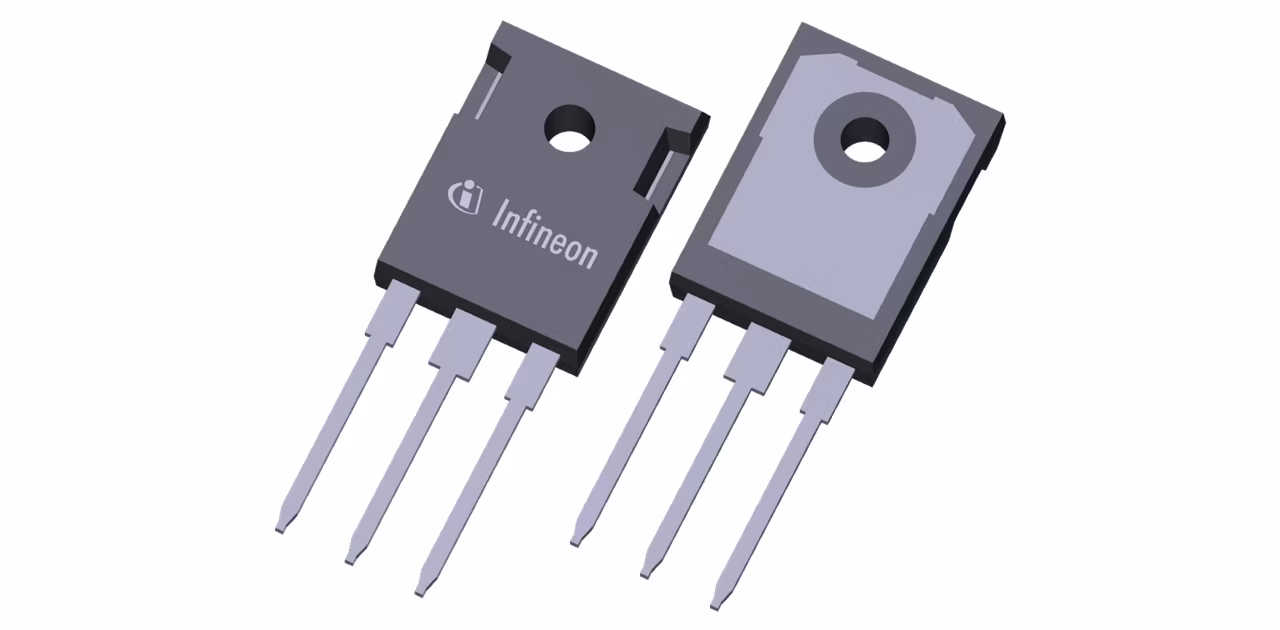

IDW30C65D2
  • IDW30C65D2

IDW30C65D2

Active

Rapid 2 switching 650 V, 30 A emitter controlled power silicon diodes in common cathode configuration and in a TO-247 package, allowing design optimization for more compact dimensions, easier assembly and consequently lower costs.

Infineon Technologies IDW30C65D2 Product Info

16 April 2026 1

Parameters

Configuration

Common Cathode

I(FSM) max

100 A

IF max

30 A

IF

15 A

IR max

40 µA

Irrm

3.3 A

Mounting

THT

Operating Temperature range

-40 °C to 175 °C

Package

TO-247

Ptot max

86 W

Qrr

0.12 µC

RthJC max

1.75 K/W

trr

51 ns

VF max

2.2 V

VF

1.6 V

Voltage Class max

650 V

Apps

Residential air conditioning, Uninterruptible power supplies (UPS)

Features

  • 1.35 V temperature-stable VF
  • Highest softness-factor for:
  • Highest softness-factor for:
  • Low EMI filtering
  • For 18 kHz to 40 kHz applications
  • Lowest Irrmfor:
  • Lowest losses on boost switch
  • Low thermal resistance
